Panduit PUP6AHD04BU-G

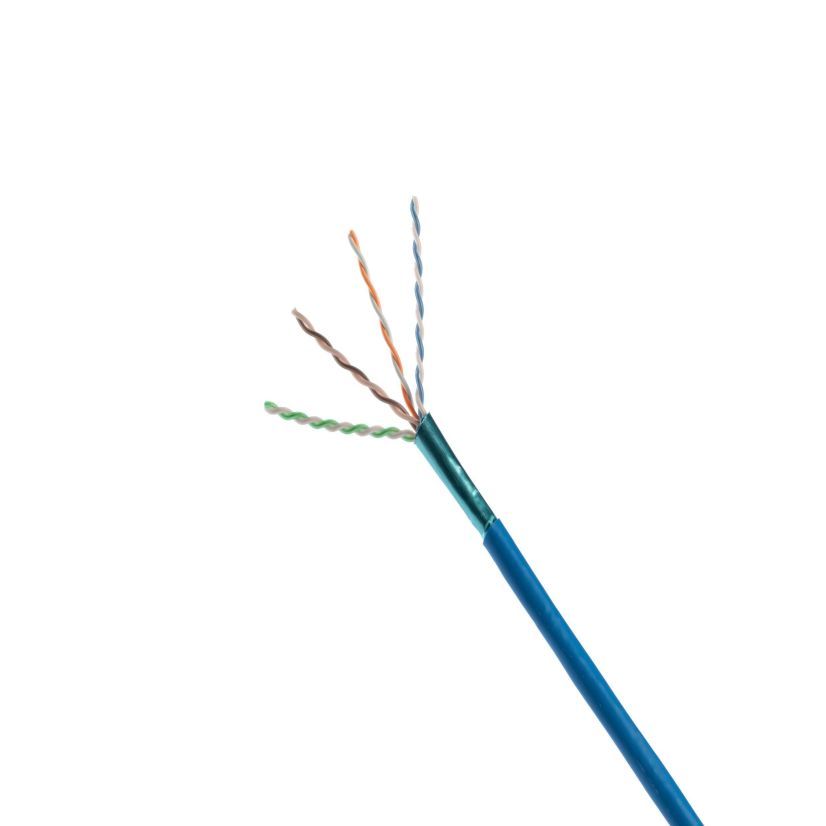

Panduit Pan-Net TX6A PUP6AHD04BU-G Cat 6A High-Density Plenum(CMP) Vari-MaTriX Cable, Reel Packaging, 80 V, (4 Pairs) 23 AWG 10Gig U/UTP Solid Copper Conductor, 305 m L
Panduit PUP6AHD04BU-G
Panduit Pan-Net TX6A PUP6AHD04BU-G Cat 6A High-Density Plenum(CMP) Vari-MaTriX Cable, Reel Packaging, 80 V, (4 Pairs) 23 AWG 10Gig U/UTP Solid Copper Conductor, 305 m LOut of Stockmore info
|
BrandPanduit
MFG #PUP6AHD04BU-G
Werner Part #4370107
UPC613056450547
Out of Stockmore info
|
BrandPanduit
MFG #PUP6AHD04BU-G
Werner Part #4370107
UPC613056450547
Product Description
Panduit Pan-Net TX6A Cable, Cat 6A High-Density Plenum(CMP) Vari-MaTriX, Reel, 80 V, 4 Pairs Conductors, 10Gig U/UTP Solid Copper Conductor, 23 AWG Conductor, 5.8 mm Outside Dia, 305 m Length, FEP Insulation, PVC Jacket, Blue Jacket, 221 deg F
Attributes
Documents
Applications
Features
Attributes
Conductor size23 AWG
Conductor Type10Gig U/UTP Solid Copper
Country of OriginUS
Insulation MaterialFEP
Jacket ColorBlue
Jacket MaterialPVC
ManufacturerPanduit
Number of Conductors4 Pairs
Outside Diameter5.8 mm
Packaging TypeReel
Temperature Rating221 deg F
TypeCat 6A High-Density Plenum(CMP) Vari-MaTriX
Voltage Rating80 V
Documents
Applications
10GBASE-T Ethernet, Data Center I/O Consolidation, Data Center Server Virtualization, Consolidation of Network Interconnects, Back-Bone Aggregation, Parallel Processing and High Speed Computing and Indoor Applications
Features
- Vari-MaTriX HD technology - best-in-class cable diameter delivers superior PSANEXT and PSAACRF suppression while retaining UTP EMI immunity
- Superior headroom warranty - provides the highest worst-case margins above the industry standard for both electrical and alien crosstalk performance
- High density cable design - improves fill capacity, cable management, reduces required bend radius and allows efficient use of pathways and spaces
- Extended temperature range - allows operation in 105 deg C (221 deg F) ambient environment providing error-free performance in high-density cabinets and large cable bundles running PoE+ or PoE++ applications
- Highest port density - all testing and headroom based on 48 port/1RU panels
- Descending length cable markings - easy identification of remaining cable reduces installation time and cable scrap
