nVent HOFFMAN N360826G050

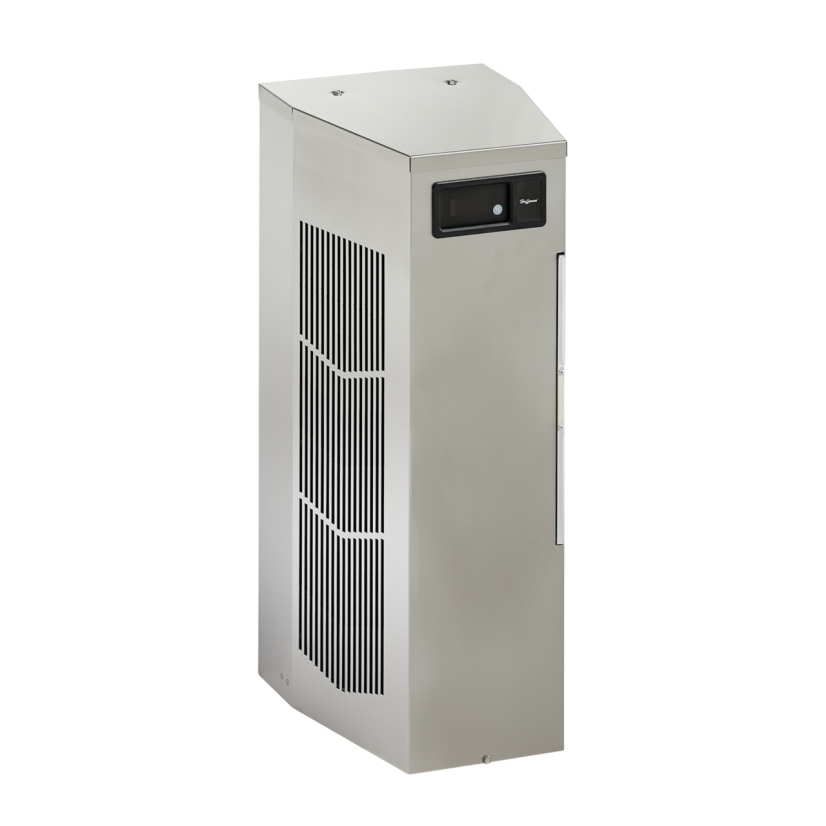

nVent HOFFMAN Spectracool N360826G050 MCLG Indoor Narrow Enclosure Air Conditioner, 230 V AC, 6.1 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 8000 Btu/hr
nVent HOFFMAN N360826G050
nVent HOFFMAN Spectracool N360826G050 MCLG Indoor Narrow Enclosure Air Conditioner, 230 V AC, 6.1 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 8000 Btu/hrNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
nVent HOFFMAN Spectracool Enclosure Air Conditioner, Indoor Narrow, Series: MCLG, 230 V AC, 6.1 A, 2635 W Power, 50/60 Hz Frequency, 8000 Btu/hr Capacity, NEMA 3R/4/12 Enclosure, -40 to 55 deg C, Ceiling Mounting, Steel, Light Gray, 36 in H x 11-1/2 in W x 14 in D Dimensions
Attributes
Documents
Applications
Features
Attributes
Amps6.1 A
BABA CompliantYes
CapacityRange: 8000 Btu/hr
Capacity Range8000 Btu/hr
ColorLight Gray
Country of OriginMX
Dimensions36 in H x 11-1/2 in W x 14 in D
Enclosure TypeNEMA 3R/4/12
Frequency Rating50/60 Hz
ManufacturernVent
MaterialSteel
Mounting TypeCeiling
Package TypePIECE
Power Rating2635 W
SeriesMCLG
Temperature Rating-40 to 55 deg C
TypeIndoor Narrow
Type / StyleIndoor Narrow
Voltage230 VAC
Voltage Rating230 V AC
Documents
Applications
Industrial Automation, Waste Water Treatment Systems, Package Handling Equipment, Security and Defense System Applications
Features
- Narrow design accommodates 12 in (300-mm) deep cabinets
- Attractive industrial design with minimal use of visible fasteners
- Level 2 Protection Include, Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- R407C, R513A or R134a refrigerants
- Models for 115, 230 and 400/460 3-phase VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)
- Reliable mechanical thermostat on enclosure side of the unit, indoor air conditioner models include digital display on ambient side
