nVent HOFFMAN G572046G050

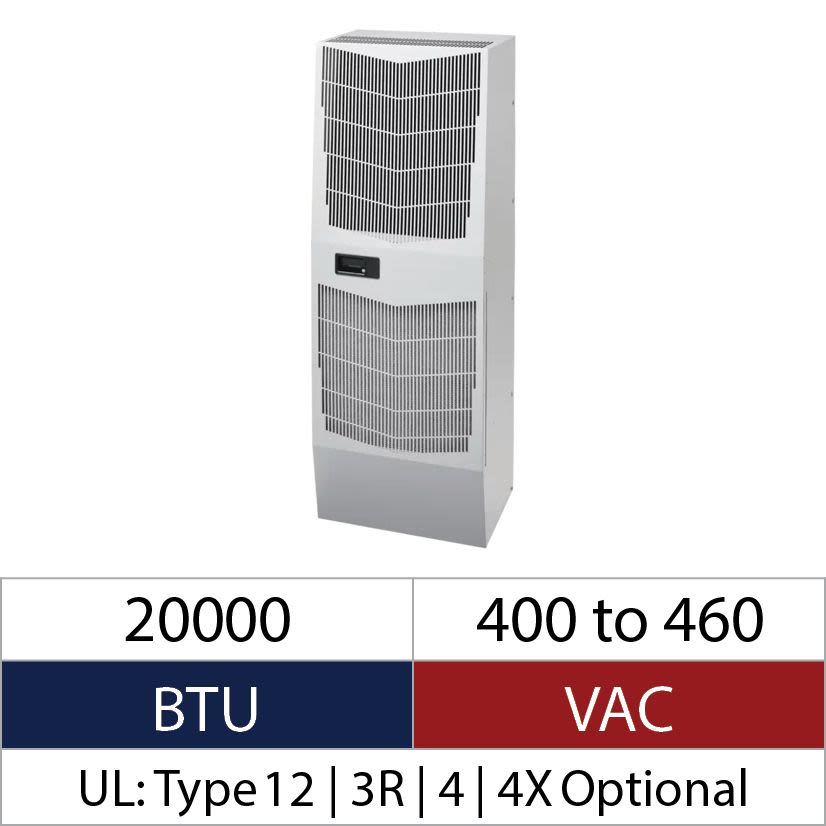

nVent HOFFMAN Spectracool G572046G050 MCLG 3-Phase Indoor Enclosure Air Conditioner, 400 to 460 V AC, 6.8 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 20000 Btu/hr
nVent HOFFMAN G572046G050
nVent HOFFMAN Spectracool G572046G050 MCLG 3-Phase Indoor Enclosure Air Conditioner, 400 to 460 V AC, 6.8 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 20000 Btu/hrOut of Stockmore info
|
BrandnVent HOFFMAN
MFG #G572046G050
Werner Part #3898961
UPC783510205171
Out of Stockmore info
|
BrandnVent HOFFMAN
MFG #G572046G050
Werner Part #3898961
UPC783510205171
Product Description
nVent HOFFMAN Spectracool Enclosure Air Conditioner, 3-Phase Indoor, Series: MCLG, 400 to 460 V AC, 6.8 A, 5861 W Power, 50/60 Hz Frequency, 20000 Btu/hr Capacity, NEMA 3R/4/12 Enclosure, -40 to 55 deg C, Ceiling Mounting, Steel, Light Gray, 57.69 in H x 20.87 in W x 15.28 in D Dimensions
Attributes
Documents
Applications
Features
Attributes
Amps6.8 A
BABA CompliantYes
CapacityRange: 20000 Btu/hr
Capacity Range20000 Btu/hr
ColorLight Gray
Country of OriginUS
Dimensions57.69 in H x 20.87 in W x 15.28 in D
Enclosure TypeNEMA 3R/4/12
Frequency Rating50/60 Hz
Hoffman On DemandHoffman On Demand Product
ManufacturernVent
MaterialSteel
Mounting TypeCeiling
Power Rating5861 W
SeriesMCLG
Temperature Rating-40 to 55 deg C
Type3-Phase Indoor
Type / Style3-Phase Indoor
Voltage400 to 460 VAC
Voltage Rating400 to 460 V AC
Documents
Applications
Industrial Automation, Telecommunications Equipment, Waste Water Treatment Systems, Package Handling Equipment, Security and Defense System Applications
Features
- Attractive industrial design with minimal use of visible fasteners
- Energy-efficient rotary compressor on most models
- Level 2 Protection Include, Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter to protect coils for maximum cooling performance in dirty environments
- R407C, R513A or R134a refrigerants
- Reliable mechanical thermostat on enclosure side of the unit
- All G-series come standard with two separate thermostats for cooling and heating when a heater is equipped
- Operating temperature range from -40 F/-40 C to 131 F/55 C
