nVent HOFFMAN CTD244210

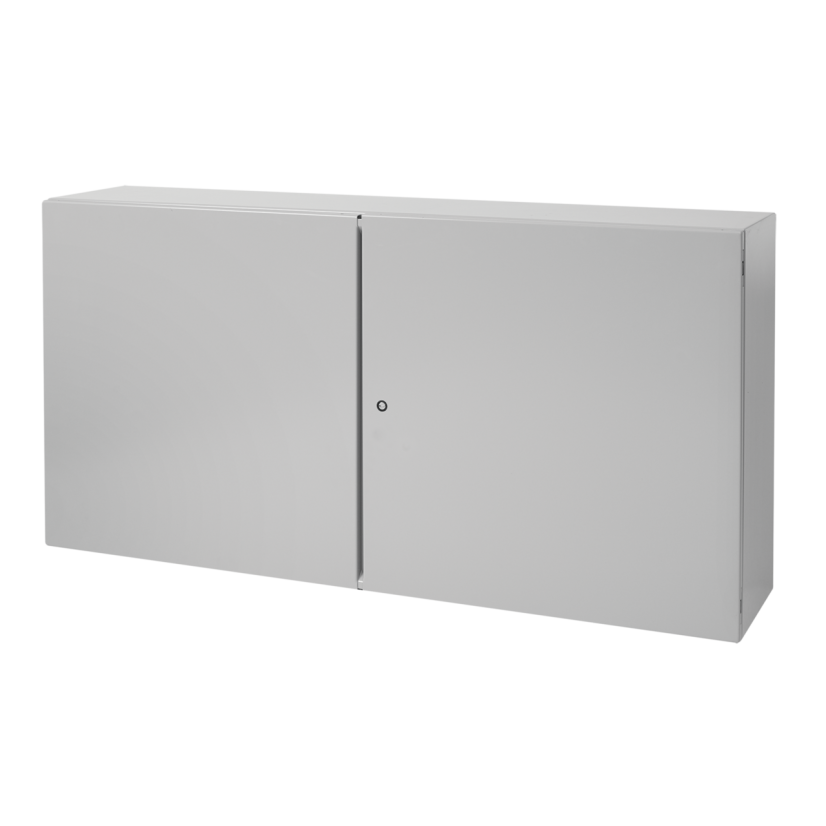

nVent HOFFMAN CONCEPT CTD244210 CW1 2-Door Enclosure, 24 in L x 42 in W x 10 in D, NEMA 12/IP55 NEMA Rating, Steel
nVent HOFFMAN CTD244210
nVent HOFFMAN CONCEPT CTD244210 CW1 2-Door Enclosure, 24 in L x 42 in W x 10 in D, NEMA 12/IP55 NEMA Rating, SteelNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #CTD244210
Werner Part #4079682
UPC783510294397
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #CTD244210
Werner Part #4079682
UPC783510294397
Product Description
nVent HOFFMAN CONCEPT Enclosure, 2-Door, Series: CW1, 24 in Length, 42 in Width, 10 in Depth, NEMA 12/IP55, Concealed Hinged Cover, 40.2 in W x 22.2 in H Panel, Lock: 3-Point Latch, Wall Mount, Steel, Polyester Powder Painted, Gray
Attributes
Documents
Applications
Included
Features
Specifications
Attributes
BABA CompliantYes
ColorGray
Country of OriginUS
Cover TypeConcealed Hinged
FinishPolyester Powder Painted
ManufacturernVent
MaterialSteel
Mounting TypeWall
NEMA RatingNEMA 12/IP55
Panel Size40.2 in W x 22.2 in H
SeriesCW1
Size40.2 in W x 22.2 in H
Type2-Door
Type / Style2-Door
Documents
Applications
Machine Control Applications
Included
Panel Mounting Nuts, Panel Grounding Hardware and Sealing Washers
Features
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 deg )
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
Specifications
3-Point Latch
