nVent HOFFMAN CR290226G045

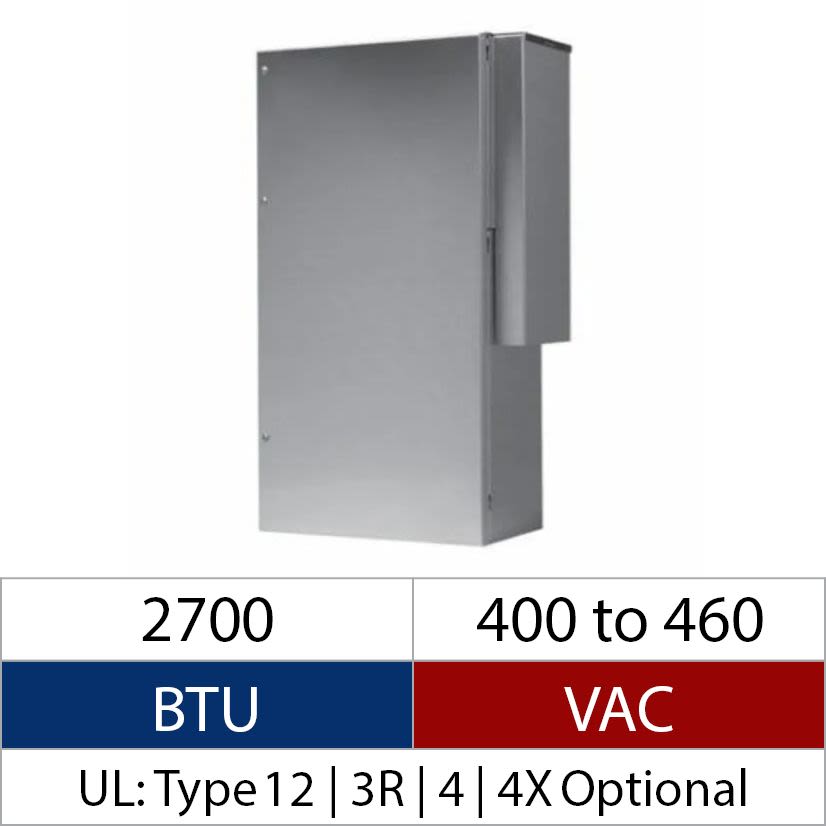

nVent HOFFMAN ProAir CR290226G045 MCL Indoor/Outdoor/Corrosion Sealed Enclosure Air Conditioner, 400 to 460 V AC, 1.9 A, 50/60 Hz, NEMA 3R/4/4X/12 Enclosure, 2700 Btu/hr
nVent HOFFMAN CR290226G045
nVent HOFFMAN ProAir CR290226G045 MCL Indoor/Outdoor/Corrosion Sealed Enclosure Air Conditioner, 400 to 460 V AC, 1.9 A, 50/60 Hz, NEMA 3R/4/4X/12 Enclosure, 2700 Btu/hrNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #CR290226G045
Werner Part #4101410
UPC783510223144
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #CR290226G045
Werner Part #4101410
UPC783510223144
Product Description
nVent HOFFMAN ProAir Sealed Enclosure Air Conditioner, Indoor/Outdoor/Corrosion, Series: MCL, 400 to 460 V AC, 1.9 A, 791 W Power, 50/60 Hz Frequency, 2700 Btu/hr Capacity, NEMA 3R/4/4X/12 Enclosure, Mechanical Thermostat Control, Wire Lead Connection, -40 to 131 deg F, Side Mounting, Steel, Gray, 2 x 2 x 2 in Dimensions
Attributes
Documents
Applications
Included
Features
Attributes
Amps1.9 A
BABA CompliantYes
CapacityRange: 2700 Btu/hr
Capacity Range2700 Btu/hr
ColorGray
Connection TypeWire Lead
Control TypeMechanical Thermostat
Country of OriginUS
Dimensions2 x 2 x 2 in
Enclosure TypeNEMA 3R/4/4X/12
Frequency Rating50/60 Hz
ManufacturernVent
MaterialSteel
Mounting TypeSide
Power Rating791 W
SeriesMCL
Temperature Rating-40 to 131 deg F
TypeIndoor/Outdoor/Corrosion
Type / StyleIndoor/Outdoor/Corrosion
Voltage400 to 460 VAC
Voltage Rating400 to 460 V AC
Documents
Applications
Industrial Automation, Package Handling Equipment, Food and Beverage, Wastewater Treatment, Security and Defense System Applications
Included
Mounting Hardware, Gasket and User Manual
Features
- Easy maintenance - hinged front cover allows quick access to all components, condenser coil can be cleaned while unit is still mounted to the cabinet
- Smooth surface with minimal use of visible fasteners
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- R134a, R513A or R407C Refrigerant
- Models for 115, 230 and 460 single phase VAC power input
- Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
