Hubbell Wiring Device - Kellems RCD111W

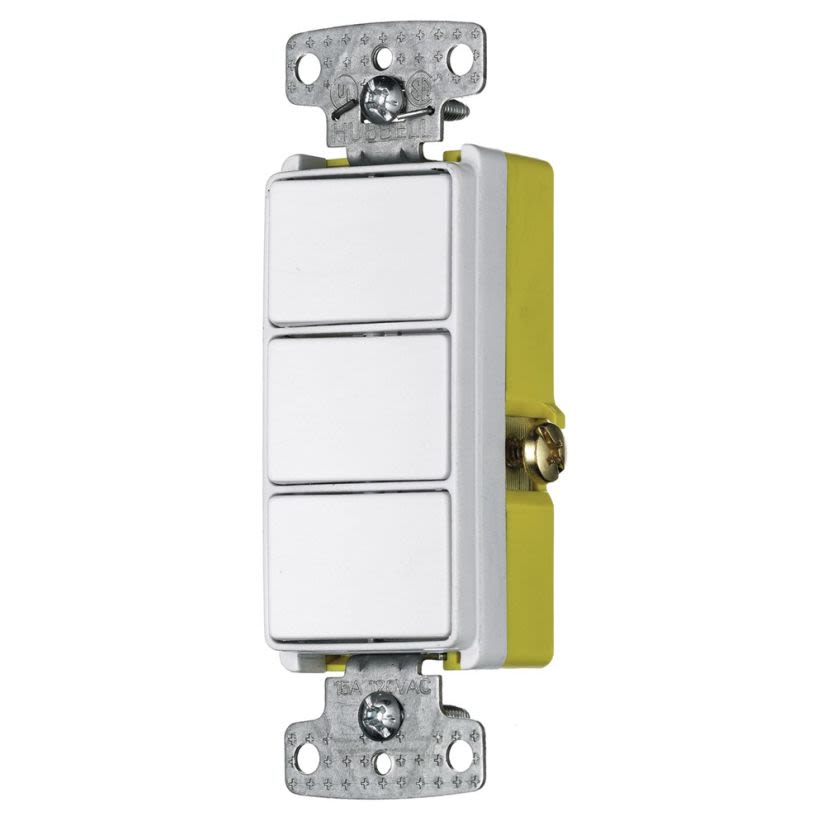

Hubbell Wiring Device-Kellems homeSELECTâ„¢ RCD111W Decorator 2-Position Combination Quiet Rocker Switch, 15 A at 120/277 VAC, 1 Poles
Hubbell Wiring Device - Kellems RCD111W
Hubbell Wiring Device-Kellems homeSELECTâ„¢ RCD111W Decorator 2-Position Combination Quiet Rocker Switch, 15 A at 120/277 VAC, 1 PolesNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #RCD111W
Werner Part #4092693
UPC883778110443
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #RCD111W
Werner Part #4092693
UPC883778110443
Product Description
Wiring Device-Kellems homeSELECTâ„¢ Combination Quiet Rocker Switch, 2-Position, Series: Decorator, 15 A at 120/277 VAC Electrical Rating, 1 Pole, Threaded Mounting, 1.32 in W x 1.11 in D x 4.2 in H Size, 30000 Operating Cycles, Environmental Conditions: UL V0-Flammability/Indoor Dry Unless Protected by Additional Means, White
Attributes
Documents
Features
Specifications
Attributes
ColorWhite
Country of OriginChina
Dimensions1.32 in W x 1 in D x 4.2 in H
Electrical Ratings4155 W
ManufacturerHubbell
Mounting TypeThreaded
Number of Poles1
SeriesDecorator
Temperature Rating-20 to 60 deg C Operating Temperature
Terminal TypeSide Wire
Type3-Way 2-Position Standard
Type / Style2-Position
Voltage Rating120/277 VAC
Documents
Features
Mini-rockers provide multiple switches in a compact single gangMaximize control while maintaining function and appearanceLow profile, less than 1 in depthSelf-grounding feature is standardElegant appearance, smooth quiet rocker actionThree 1-pole switchesSide wired connectivitySnap switch actionRocker actuatorStandard display sizeBrass rocker contacts and terminal, zinc plated steel bridge, drive screw and mounting screws, plastic base, cover, rocker button, spring housing and washersStainless steel grounding spring, silver switch contact, steel spring4155 W power-20 to 60 deg C operating temperature without impact1500 VAC minimum for 1 min withstands dielectric voltage14 to 12 AWG solid and stranded copper wire only back and side wire, 14 AWG solid copper wire only push wire mechanical terminal accommodation
Specifications
Standards/Approvals: CSA Certified|UL E3896
