Hubbell Wiring Device - Kellems RCD101W

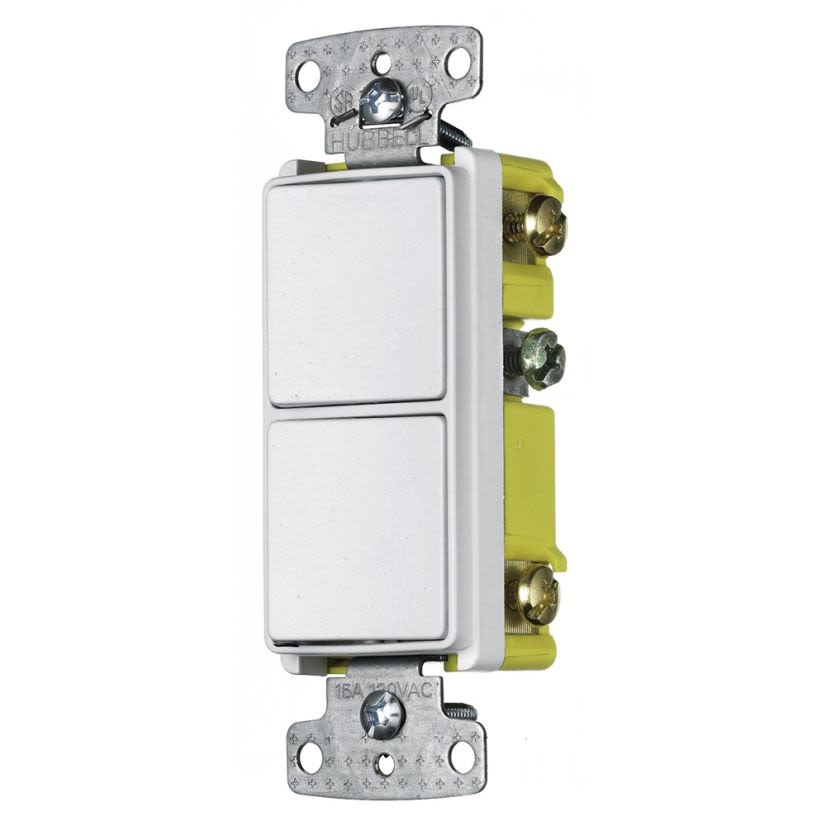

Hubbell Wiring Device-Kellems homeSELECTâ„¢ RCD101W Decorator 2-Position Combination Quiet Rocker Switch, 15 A at 120/277 VAC, 1 Poles
Hubbell Wiring Device - Kellems RCD101W
Hubbell Wiring Device-Kellems homeSELECTâ„¢ RCD101W Decorator 2-Position Combination Quiet Rocker Switch, 15 A at 120/277 VAC, 1 PolesOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Wiring Device-Kellems homeSELECTâ„¢ Combination Quiet Rocker Switch, 2-Position, Series: Decorator, 15 A at 120/277 VAC Electrical Rating, 1 Pole, Threaded Mounting, 1.32 in W x 1.11 in D x 4.2 in H Size, 30000 Operating Cycles, Environmental Conditions: UL V0-Flammability/Indoor Dry Unless Protected by Additional Means, White
Attributes
Documents
Features
Specifications
Attributes
ColorWhite
Country of OriginChina
Dimensions1.32 in W x 1 in D x 4.2 in H
Electrical Ratings4155 W
ManufacturerHubbell
Mounting TypeThreaded
Number of Poles1
SeriesDecorator
Size1.32 in W x 1.11 in D x 4.2 in H
Temperature Rating-20 to 60 deg C Operating Temperature
Terminal TypeSide Wire
Type2-Position Standard
Type / Style2-Position
Voltage Rating120/277 VAC
Documents
Features
Mini-rockers provide multiple switches in a compact single gangMaximize control while maintaining function and appearanceLow profile, less than 1 in depthSelf-grounding feature is standardElegant appearance, smooth quiet rocker actionTwo 1-pole switchSide wired connectivitySnap switch actionRocker actuatorStandard display sizeBrass rocker button and terminal, zinc plated steel bridge, drive screw and mounting screws, plastic base, cover, rocker button, spring housing and washersStainless steel grounding spring, silver switch contact, steel spring4155 W power-20 to 60 deg C operating temperature without impact1500 VAC minimum for 1 min withstands dielectric voltage14 to 12 AWG solid and stranded copper wire only back and side wire, 14 AWG solid copper wire only push wire mechanical terminal accommodation
Specifications
Standards/Approvals: CSA Certified, UL E3896
