Hubbell Wiring Device - Kellems L620C

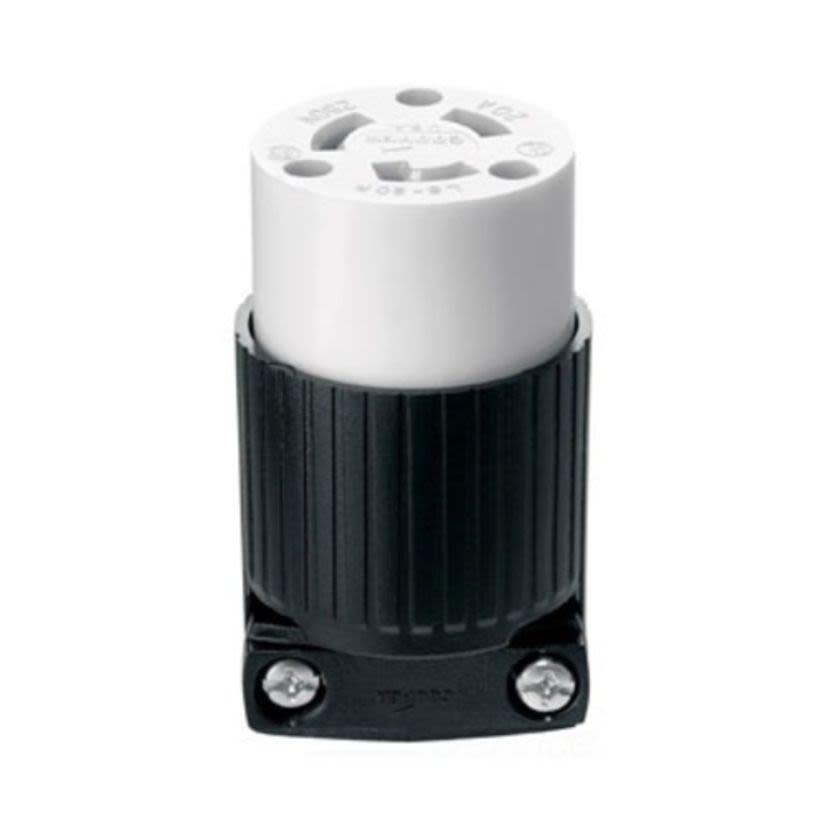

Hubbell Wiring Device-Kellems Pro™ Twist-Lock L620C Female Grounding Standard Locking Connector, 250 VAC, 20 A, 2 Poles, 3 Wires, Black/White
Hubbell Wiring Device - Kellems L620C
Hubbell Wiring Device-Kellems Pro™ Twist-Lock L620C Female Grounding Standard Locking Connector, 250 VAC, 20 A, 2 Poles, 3 Wires, Black/WhiteIn Stock: 28more info
|
BrandHubbell Wiring Device - Kellems
MFG #L620C
Werner Part #1510575
UPC783585835792
In Stock: 28more info
|
BrandHubbell Wiring Device - Kellems
MFG #L620C
Werner Part #1510575
UPC783585835792
Product Description
Hubbell® Pro™ locking devices provide a safe disconnect solution between an equipment load and a power source. These devices incorporate a locking interface that is engaged and disengaged simply by rotating the device assuring a safe and reliable electrical connection.
Attributes
Documents
Features
Specifications
Attributes
ColorBlack/White
Country of OriginChina
GradeCommercial/Industrial
GTIN00783585835792
ManufacturerHubbell
MaterialComposite
NEMA RatingL6-20R
Number of Poles2
Number of Wires3
SeriesFemale Grounding Standard
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
TypeFemale Grounding Standard Cord Mount
Type / StyleFemale Grounding Standard
Voltage Rating250 VAC
Documents
Features
- Supertough® nylon body
- Visible NEMA ratings
- Captive assembly screws
- Impact modified nylon blade/contact holder
- High performance copper alloy contacts/blade
- Withstands 3500 VAC per UL 498 dielectric voltage
- Minimum 4.8 times rated current for 100 cycles overload
- Terminals identified in accordance with UL 498
- 18 to 8 AWG flexible cord terminal accommodation
- Ratings and NEMA identification are permanently marked on device
- Cord mounted
- Insulated body
- Indoor dry unless protected by additional means
- 14 to 12 AWG conductor size
- Standard sized product
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA Certified|UL 498|NEMA WD1/WD5
