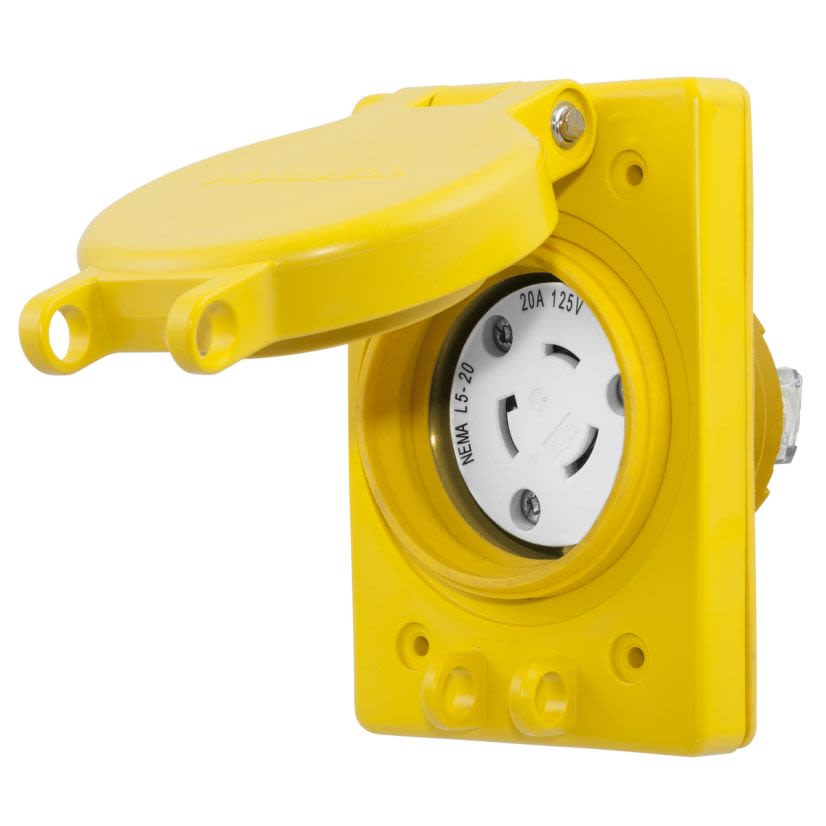

Hubbell Wiring Device - Kellems HBL67W47
Hubbell Wiring Device-Kellems Twist-Lock HBL67W47 1-Phase Grounding Standard Single Watertight Screw Mount Locking Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Yellow
Hubbell Wiring Device - Kellems HBL67W47
Hubbell Wiring Device-Kellems Twist-Lock HBL67W47 1-Phase Grounding Standard Single Watertight Screw Mount Locking Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, YellowOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Hubbell Wiring Device-Kellems Twist-Lock, HBL67W47, Locking Receptacle, 1-Phase Grounding Standard Single Watertight Screw Mount, 125 V AC, 20 A, 2 Pole, 3 Wires, L5-20R NEMA Rating, Industrial Grade, NEMA 4/4X/6/6P/12/IP65/IP66/IP67 Enclosure, -40 to 60 deg C, Screw Terminal, Elastomer/Composite, Yellow, 4.56 x 3.1 x 2.92 in Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
ColorYellow
Country of OriginUS
Dimensions4.56 x 3.1 x 2.92 in
Enclosure TypeNEMA 4/4X/6/6P/12/IP65/IP66/IP67
GradeIndustrial
ManufacturerHubbell
MaterialElastomer/Composite
NEMA RatingL5-20R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeScrew
Type1-Phase Grounding Standard Single Watertight Screw Mount
Type / StyleReceptacle
Voltage Rating125 V AC
Documents
Applications
Commercial, Wet and Wash Applications
Warranty
Limited
Features
- Thermoplastic elastomer seal
- Impact resistant PBT lid, cover plate, and receptacle body
- Stainless steel hardware and corrosion-resistant connection points
