Hubbell Wiring Device - Kellems HBL5965VBLK

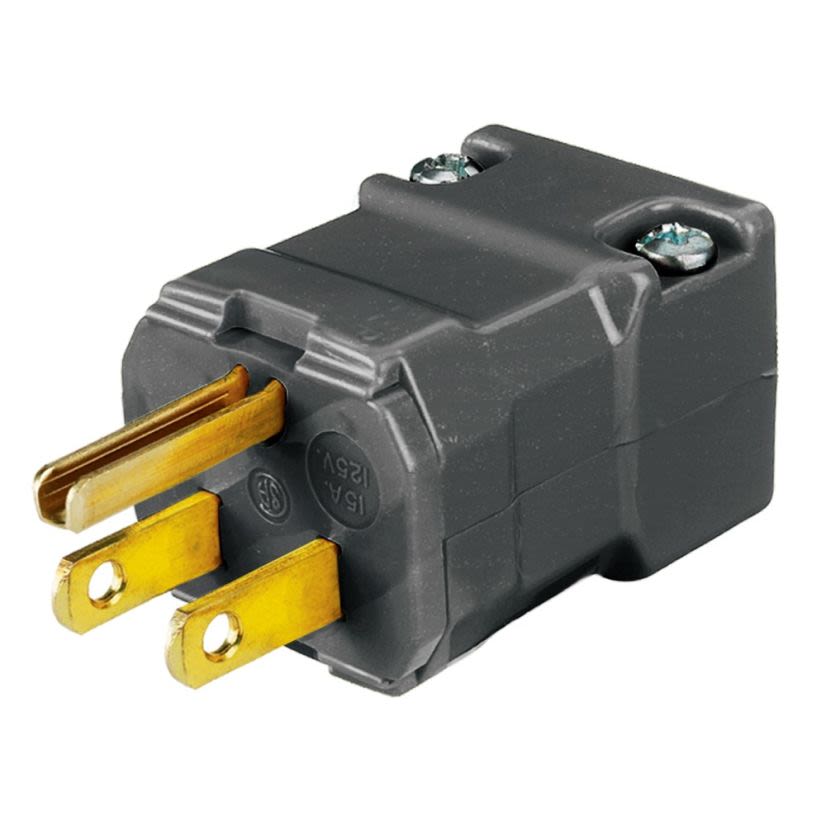

Hubbell Wiring Device-Kellems Valise HBL5965VBLK 1-Phase Grounding Male Portable Standard Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Hubbell Wiring Device - Kellems HBL5965VBLK
Hubbell Wiring Device-Kellems Valise HBL5965VBLK 1-Phase Grounding Male Portable Standard Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, BlackNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL5965VBLK
Werner Part #39199
UPC783585013084
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL5965VBLK
Werner Part #39199
UPC783585013084
Product Description
Wiring Device-Kellems Valise® Straight Blade Plug, 1-Phase Grounding Male Portable Standard, 125 VAC, 15 A, 2 hp, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.22 to 0.66 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black, 1-7/8 in L x 1-1/4 in W x 1-1/8 in H Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorBlack
Country of OriginUnited States
Dimensions1.87 x 1.12 x 1.87 in
Enclosure TypeIP20
GradeCommercial/Industrial
Horsepower2 hp
ManufacturerHubbell
MaterialPolycarbonate
NEMA Rating5-15P
Number of Poles2
Number of Wires3
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type1-Phase Grounding Male Portable Standard Cord Mount
Type / Style1-Phase Grounding Male Portable Standard
Voltage Rating125 VAC
Documents
Features
Hinged one piece body design for easy assemblyPowerful, off setting cord grips clamp on individual conductorsAssembly screws are captive and will not fall OUT while wiringNoryl® (polyphenylene oxide) cord clamp material0.06 in brass contact blades0.04 in brass ground contact bladeSteel (copper finish) terminal screwSteel (green finish) ground screwWithstands 2000 VAC dielectric voltageCertified for current interrupting at full rated currentMaximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature riseTerminals identified in accordance with UL 498 (brass, white, green)18 to 14 AWG solid or stranded copper conductor terminal accommodationRatings are a permanent part of the device product identificationUL 94 V-2 flammability rating
Specifications
Standards/Approvals: UL 498 File No. E1706 Listed|UL 94 V-2 Flammability Rating|CSA C22.2 File No. 42, 280|NEMA WD1/WD5/WD6
