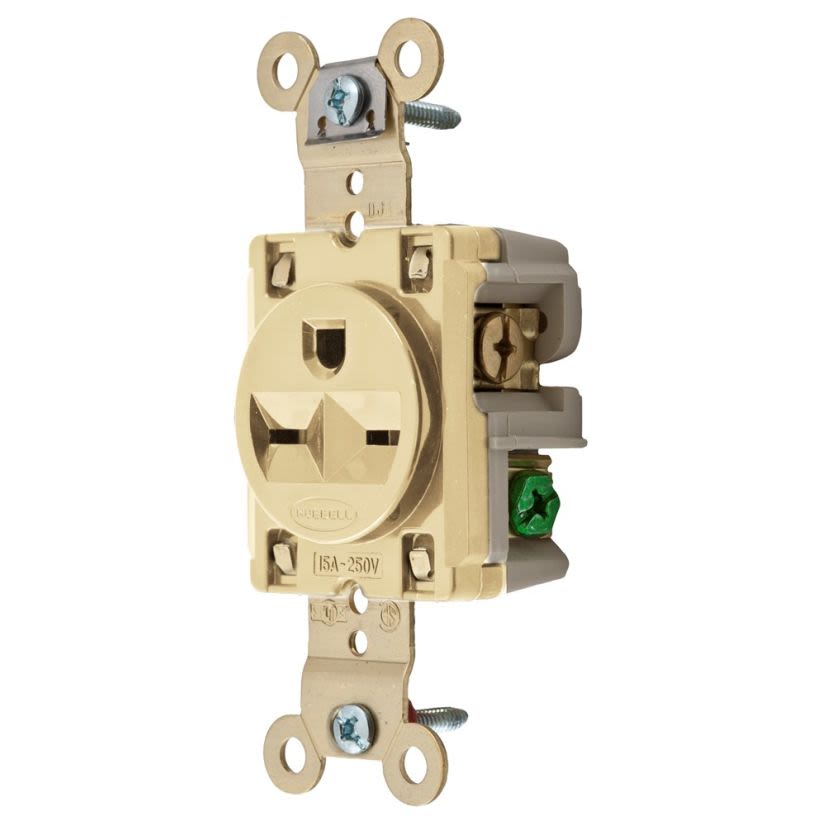

Hubbell Wiring Device - Kellems HBL5661I
Hubbell Wiring Device-Kellems HBL HBL5661I Extra Heavy Duty Grounding Single Standard Straight Blade Receptacle, 250 VAC, 15 A, 2 Poles, 3 Wires, Ivory
Hubbell Wiring Device - Kellems HBL5661I
Hubbell Wiring Device-Kellems HBL HBL5661I Extra Heavy Duty Grounding Single Standard Straight Blade Receptacle, 250 VAC, 15 A, 2 Poles, 3 Wires, IvoryNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL5661I
Werner Part #629214
UPC783585014005
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL5661I
Werner Part #629214
UPC783585014005
Product Description
Wiring Device-Kellems HBL® Straight Blade Receptacle, Extra Heavy Duty Grounding Single Standard, 250 VAC, 15 A, 1-1/2 hp, 2 Poles, 3 Wires, NEMA 6-15R, Industrial/Specification Grade, -40 to 75 deg C, Back/Side Wired Screw Terminal, Nylon, Ivory, 1.94 in H x 1.63 in W x 1.19 in D
Attributes
Documents
Features
Specifications
Attributes
ColorIvory
Country of OriginUnited States
Dimensions1.94 x 1.63 x 1.19 in
GradeIndustrial/Specification
Horsepower1.5 hp
ManufacturerHubbell
MaterialNylon
NEMA Rating6-15R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 75 deg C
Terminal TypeSide Wired
Type1-Phase Extra Heavy Duty Grounding Single Standard Screw Mount
Type / StyleExtra Heavy Duty Grounding Single Standard
Voltage Rating250 VAC
Documents
Features
One piece brass ground strapExclusive bypass contact design for greater contact force and reduced heat buildupBarbed assembly arms reduce possibility of face/base separationFinder groove face
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA C22.2 No. 42 File No. 285|Federal Specification WC596|NEMA WD1/WD5/WD6|UL 498 File No. E2186
