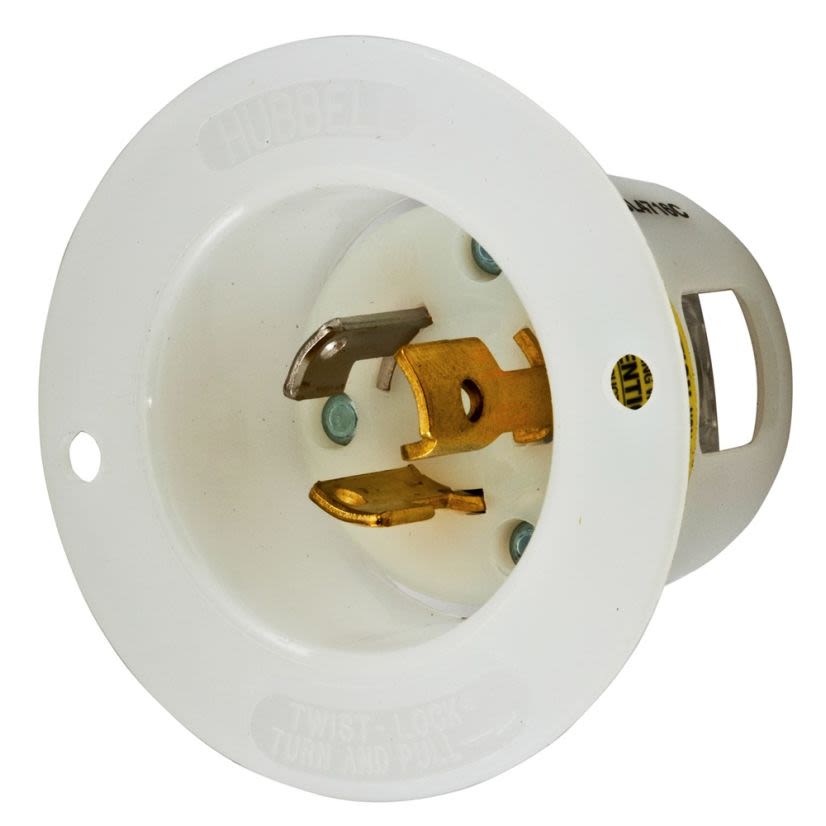

Hubbell Wiring Device - Kellems HBL4716C
Hubbell Wiring Device-Kellems Twist-Lock Insulgrip HBL4716C Heavy Duty Grounding Locking Flanged Inlet With Mounting Screw, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Hubbell Wiring Device - Kellems HBL4716C
Hubbell Wiring Device-Kellems Twist-Lock Insulgrip HBL4716C Heavy Duty Grounding Locking Flanged Inlet With Mounting Screw, 125 VAC, 15 A, 2 Poles, 3 Wires, WhiteNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Flanged Inlet, Heavy Duty Grounding, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA L5-15P, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, White, 2.56 in Dia x 1.72 in L
Attributes
Documents
Features
Specifications
Attributes
ColorWhite
Country of OriginUnited States
Dimensions2.56 x 2.56 x 1.72 in
Enclosure TypeIP20
GradeIndustrial
Horsepower1/2 hp
ManufacturerHubbell
MaterialNylon
NEMA RatingL5-15P
Number of Poles2
Number of Wires3
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type1-Phase Heavy Duty Grounding Screw Mount
Type / StyleHeavy Duty Grounding
Voltage Rating125 VAC
Documents
Features
Impact resistant thermoplastic constructionBackwired terminations for ease of installation32 to 10 AWG multiple drive terminal screws slotted, Phillips and RobertsonWithstands 2000 VAC minimum dielectric voltage18 to 10 AWG terminal accommodationClear polycarbonate terminal retainerBrass blade, terminal screw and ground screw0.062 in steel nickel plated terminal clampSteel zinc plated body holding screwNatural white nylon body contact carrier material and flanged casing material
Specifications
Standards/Approvals: UL 498 Listed|Federal Specification W-C-596|CSA C22.2 No. 42 Certified|NEMA WD1/WD5
