Hubbell Wiring Device - Kellems HBL3521C

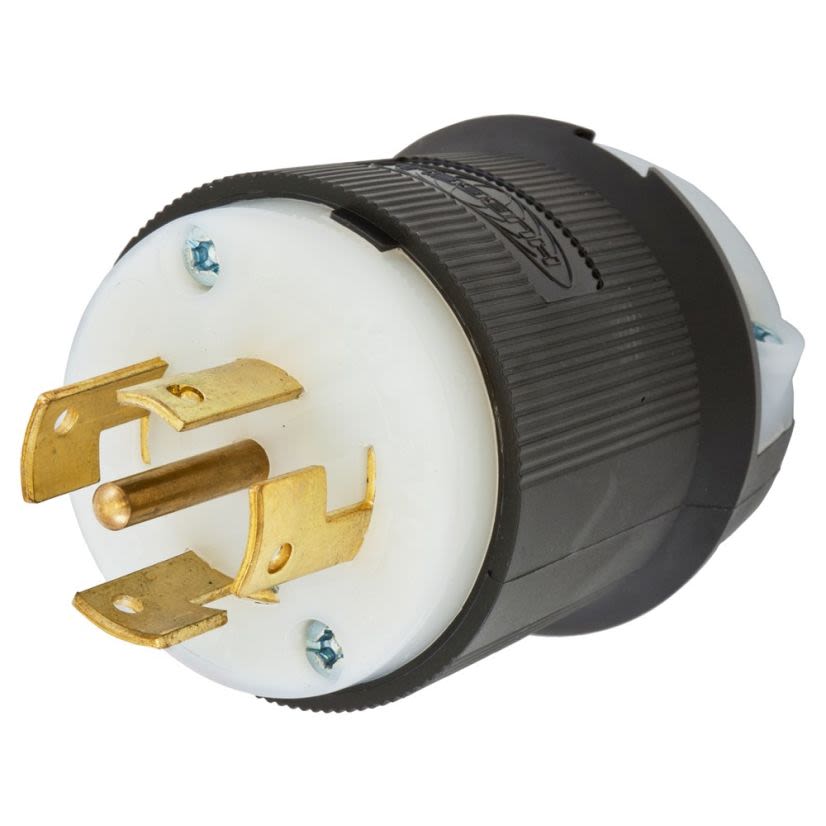

Hubbell Wiring Device-Kellems Twist-Lock Insulgrip HBL3521C Grounding Locking Plug, 250/600 VAC, 20 A, 4 Poles, 5 Wires, Black/White
Hubbell Wiring Device - Kellems HBL3521C
Hubbell Wiring Device-Kellems Twist-Lock Insulgrip HBL3521C Grounding Locking Plug, 250/600 VAC, 20 A, 4 Poles, 5 Wires, Black/WhiteNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL3521C
Werner Part #39007
UPC783585039916
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL3521C
Werner Part #39007
UPC783585039916
Product Description
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, Grounding, 250/600 VAC, 20 A, 4 Pole, 5 Wires, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.33 in Dia x 2.75 in L Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorBlack/White
Country of OriginUnited States
Dimensions2.33 x 2.33 x 2.75 in
Enclosure TypeIP20
GradeIndustrial
ManufacturerHubbell
MaterialNylon
NEMA RatingNON-NEMA
Number of Poles4
Number of Wires5
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type3-Phase Grounding Cord Mount
Type / StyleGrounding
Voltage Rating250/600 VAC
Documents
Features
Withstands 2000 VAC dielectric voltage10 to 8 AWG wire16 to 8 AWG stranded copper wire terminal accommodationMaximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature riseCertified for current interrupting at full rated current interruptingTerminals identified in accordance with UL 498Ribbed nylon housing provides a secure grip and impact and chemical resistanceSuperior cord grip design protects terminations from excess strainClear, funnel shaped wire entry for ease of terminationIntegral dust shield protects wiring chamber from dust or contaminants#10-32 brass (Phillips/slotted/Robertson) terminal screwsClear polycarbonate terminal retainerBrass bladesCold rolled steel nickel plated terminal clamp and steel nickel plated assembly screwsIndoor dry unless protected by additional means
Specifications
Standards/Approvals: UL 498|UL94 Flammability Rating|Federal Specification W-C-596|CSA C22.2 No. 42/0.6
