Hubbell Wiring Device - Kellems HBL2761

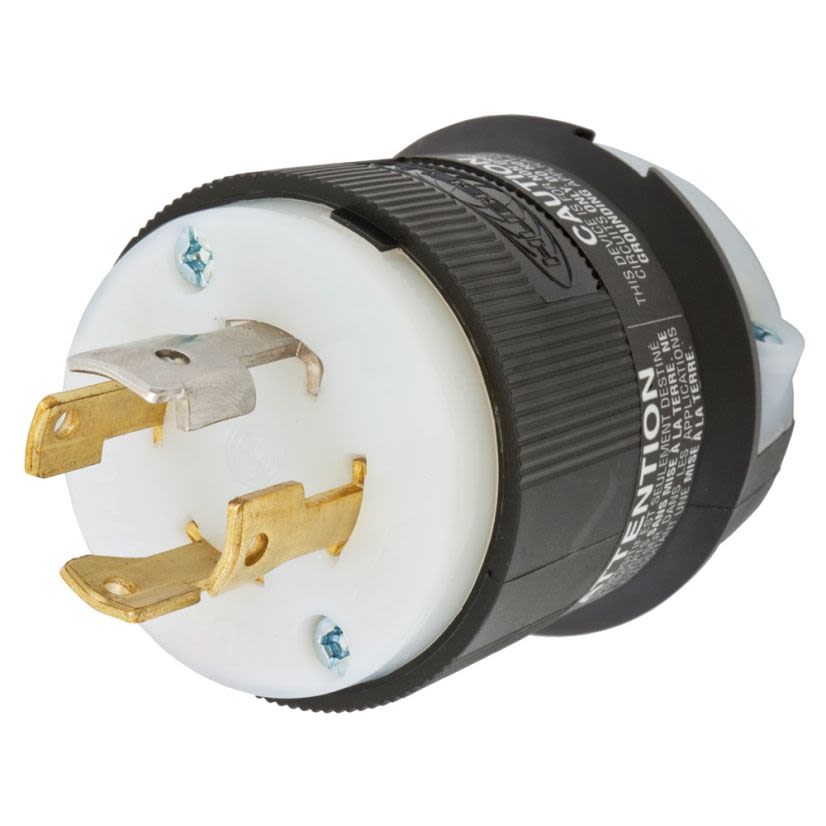

Hubbell Wiring Device-Kellems Twist-Lock Insulgrip HBL2761 3-Phase Non-Grounding Locking Plug, 277/480 VAC, 30 A, 4 Poles, 4 Wires, Black/White
Hubbell Wiring Device - Kellems HBL2761
Hubbell Wiring Device-Kellems Twist-Lock Insulgrip HBL2761 3-Phase Non-Grounding Locking Plug, 277/480 VAC, 30 A, 4 Poles, 4 Wires, Black/WhiteNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, 3-Phase Non-Grounding, 277/480 VAC, 30 A, 5 hp, 4 Pole, 4 Wires, NEMA L19-30P, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Brass/Clear Polycarbonate/Composite/Nylon/Polybutylene Terephthalate, Black/White, 2.26 in Dia x 2.75 in L Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorBlack/White
Country of OriginUnited States
Dimensions2.33 x 2.33 x 2.75 in
Enclosure TypeIP20
GradeIndustrial
Horsepower5 hp
ManufacturerHubbell
MaterialNylon
NEMA RatingL19-30P
Number of Poles4
Number of Wires4
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type3-Phase Non-Grounding Cord Mount
Type / Style3-Phase Non-Grounding
Voltage Rating277/480 VAC
Documents
Features
Ribbed nylon housing provides a secure grip and impact and chemical resistanceSuperior cord grip design protects terminations from excess strainIntegral dust shield protects wiring chamber from dust or contaminantsClear, funnel shaped wire entry for ease of termination
Specifications
Standards/Approvals: UL 498|CSA C22.2 No. 42|Federal Specification W-C-596|RoHS|ARRA|Buy American Act Compliant
