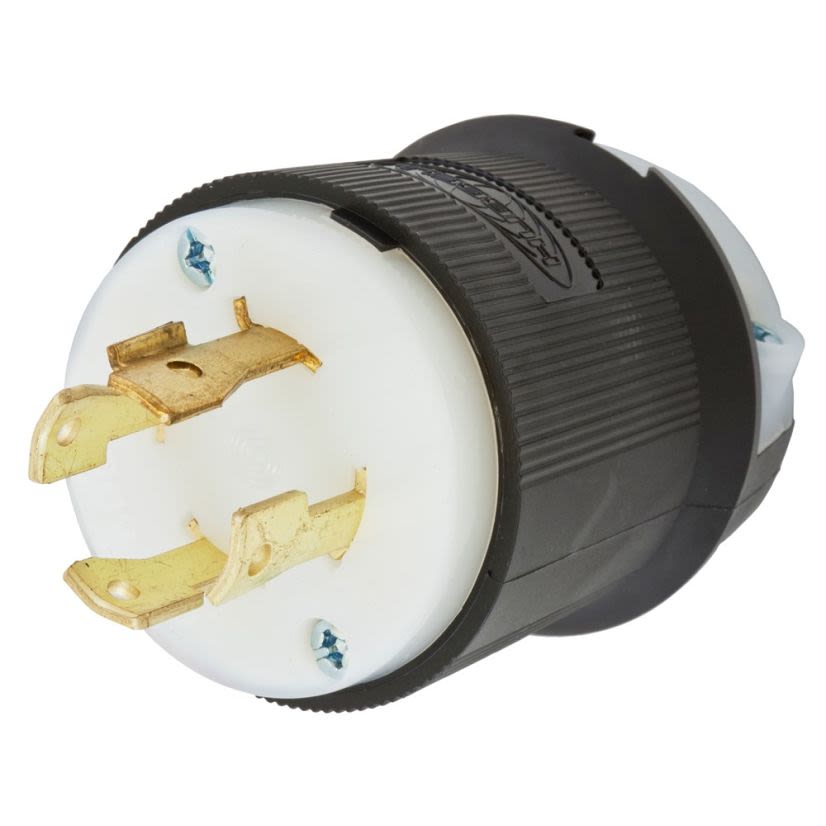

Hubbell Wiring Device - Kellems HBL2741
Hubbell Wiring Device-Kellems Twist-Lock Insulgrip HBL2741 Grounding Locking Plug, 600 VAC, 30 A, 3 Poles, 4 Wires, Black/White
Hubbell Wiring Device - Kellems HBL2741
Hubbell Wiring Device-Kellems Twist-Lock Insulgrip HBL2741 Grounding Locking Plug, 600 VAC, 30 A, 3 Poles, 4 Wires, Black/WhiteNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, Grounding, 600 VAC, 30 A, 3 Pole, 4 Wires, NEMA L17-30P, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.33 in Dia x 2.75 in L Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorBlack/White
Country of OriginUnited States
Dimensions2.33 x 2.33 x 2.75 in
Enclosure TypeIP20
GradeIndustrial
ManufacturerHubbell
MaterialNylon
NEMA RatingL17-30P
Number of Poles3
Number of Wires4
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type3-Phase Grounding Cord Mount
Type / StyleGrounding
Voltage Rating600 VAC
Documents
Features
Withstands 2000 VAC dielectric voltage10 to 8 AWG wire16 to 8 AWG stranded copper wire terminal accommodationMaximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature riseTerminals identified in accordance with UL 498Certified for current interrupting at full rated current interruptingClear polycarbonate terminal retainerBrass blade, terminal screw and ground screw#10-32 brass (white finish on neutral screw when used) multi-drive terminal screwSteel nickel plated terminal clampSuperior cord grip design protects terminations from excess strainRibbed nylon housing provides a secure grip and impact and chemical resistanceIntegral dust shield protects wiring chamber from dust or contaminantsClear, funnel shaped wire entry for ease of terminationIndoor dry unless protected by additional means
Specifications
Standards/Approvals: UL 498|UL94 Flammability Rating|Federal Specification W-C-596|CSA C22.2 No. 42/0.6
