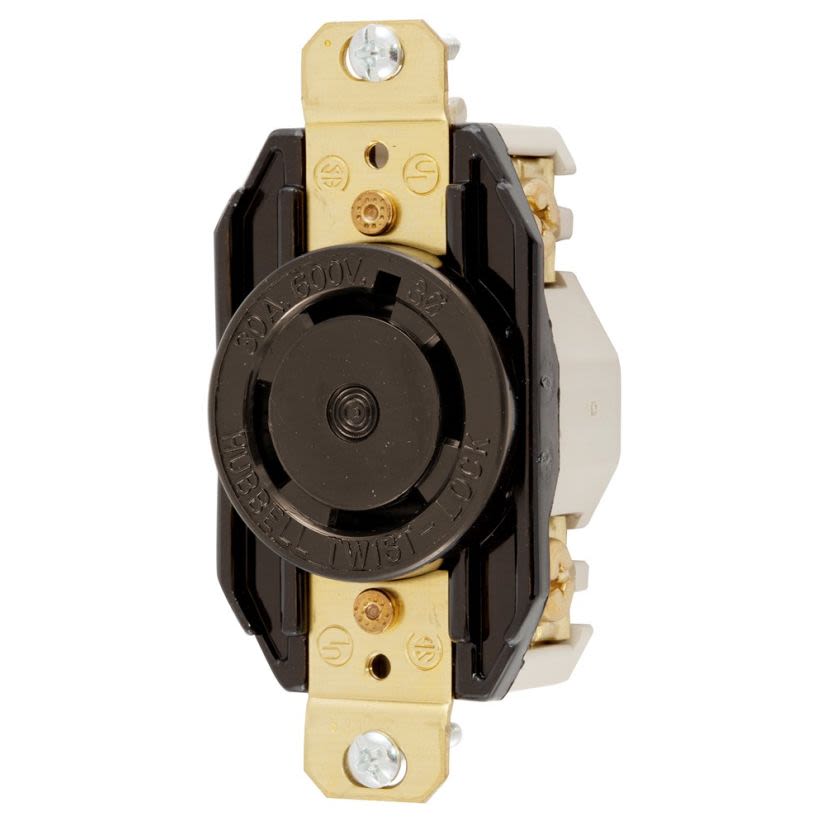

Hubbell Wiring Device - Kellems HBL2740
Hubbell Wiring Device-Kellems Twist-Lock HBL2740 Grounding Heavy Duty Single Locking Receptacle, 600 VAC, 30 A, 3 Poles, 4 Wires, Black
Hubbell Wiring Device - Kellems HBL2740
Hubbell Wiring Device-Kellems Twist-Lock HBL2740 Grounding Heavy Duty Single Locking Receptacle, 600 VAC, 30 A, 3 Poles, 4 Wires, BlackNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL2740
Werner Part #38966
UPC783585236179
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL2740
Werner Part #38966
UPC783585236179
Product Description
Wiring Device-Kellems Twist-Lock® Locking Receptacle, Grounding Heavy Duty Single, 600 VAC, 30 A, 10 hp, 3 Pole, 4 Wires, NEMA L17-30R, Industrial Grade, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic, Black, 1.313 in D Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorBlack
Country of OriginUnited States
Dimensions3.28 x 1.7 x 1.31 in
GradeIndustrial
Horsepower10 hp
ManufacturerHubbell
MaterialNylon
NEMA RatingL17-30R
Number of Poles3
Number of Wires4
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type3-Phase Grounding Heavy Duty Single Screw Mount
Type / StyleGrounding Heavy Duty Single
Voltage Rating600 VAC
Documents
Features
Withstands 2000 VAC dielectric voltageMaximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise#10-32 bronze terminal and ground screw10 AWG terminal accommodationCertified for current interrupting at full rated current interruptingSteel zinc plated mounting screw
Specifications
Standards/Approvals: UL 498| Federal Specification W-C-596|CSA C22.2 No. 42| NEMA WD1/WD5
