Hubbell Wiring Device - Kellems HBL2646

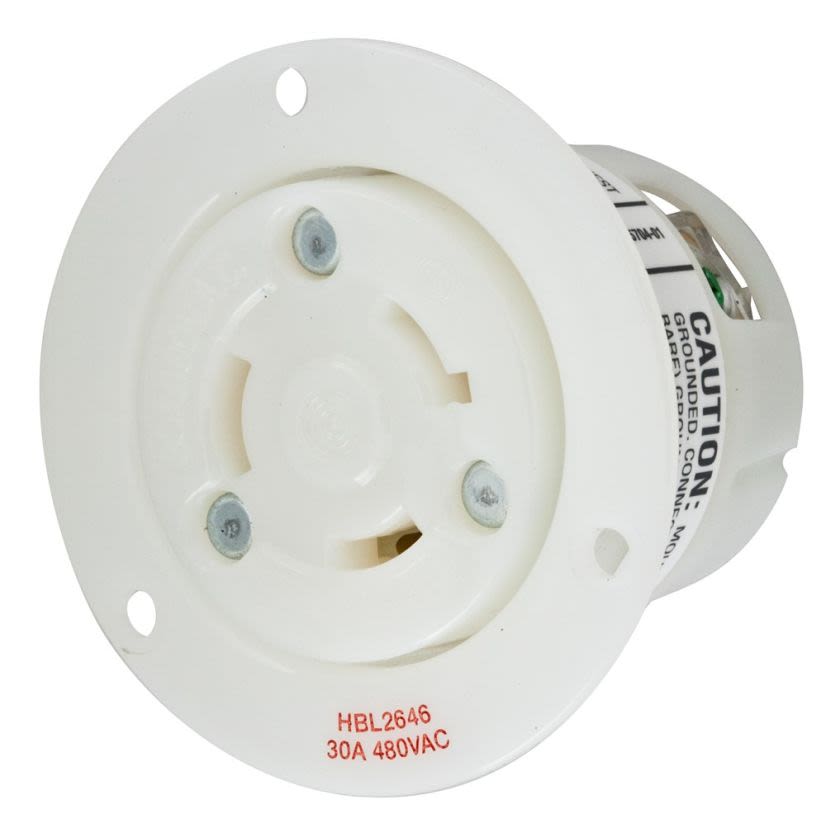

Hubbell Wiring Device-Kellems Twist-Lock Insulgrip HBL2646 Flanged Standard Single Locking Receptacle, 480 VAC, 30 A, 2 Poles, 3 Wires, White
Hubbell Wiring Device - Kellems HBL2646
Hubbell Wiring Device-Kellems Twist-Lock Insulgrip HBL2646 Flanged Standard Single Locking Receptacle, 480 VAC, 30 A, 2 Poles, 3 Wires, WhiteNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL2646
Werner Part #621584
UPC783585039039
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL2646
Werner Part #621584
UPC783585039039
Product Description
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Receptacle, Flanged Standard Single, 480 VAC, 30 A, 5 hp, 2 Poles, 3 Wires, NEMA L8-30R, Industrial Grade, NEMA 4X/12/IP20 Enclosure, -40 to 75 deg C, Back Wired/Screw Terminal, Composite/Thermoplastic, White, 2.88 in Dia x 2.09 in L
Attributes
Documents
Features
Specifications
Attributes
ColorWhite
Country of OriginUnited States
Dimensions2.88 x 2.88 x 2.09 in
Enclosure TypeNEMA 4X/12/IP20
GradeIndustrial
Horsepower5 hp
ManufacturerHubbell
MaterialNylon
NEMA RatingL8-30R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type1-Phase Flanged Standard Single Screw Mount
Type / StyleFlanged Standard Single
Voltage Rating480 VAC
Documents
Features
NO 10-32 multiple drive terminal screws (slotted, Phillips, Robertson)Backwired terminations for ease of installationImpact-resistant thermoplastic construction
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 94|UL 498|CSA 22.2 No. 42/0.17|UL94 Flammability Rating|Federal Specification W-C-596|NEMA WD1/WD5
