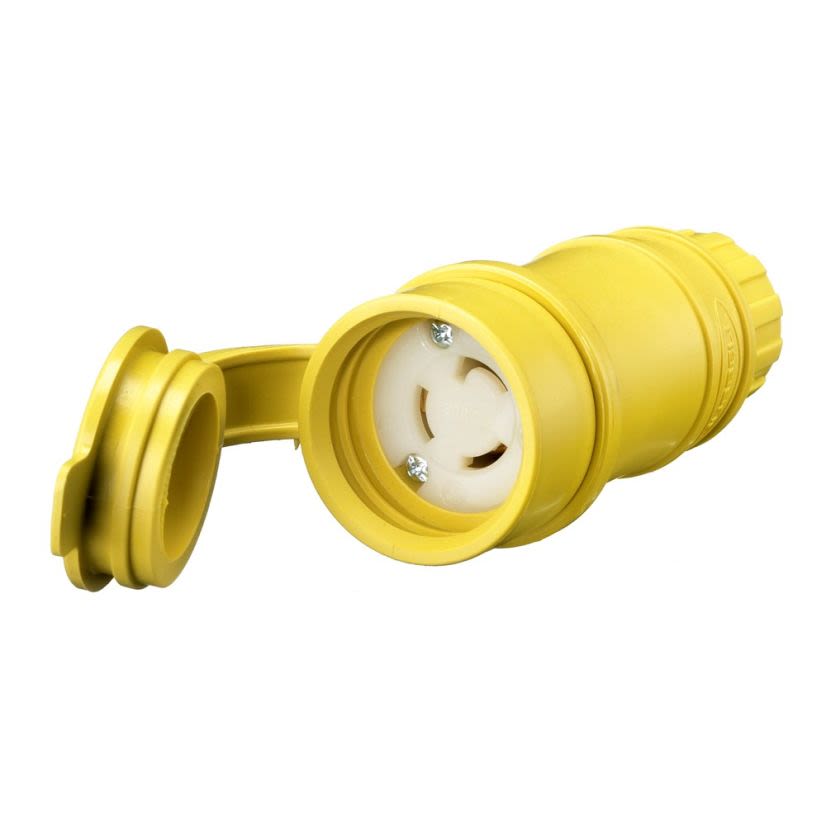

Hubbell Wiring Device - Kellems HBL25W47
Hubbell Wiring Device-Kellems Twist-Lock Elastogrip HBL25W47 Grounding Heavy Duty Locking Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Hubbell Wiring Device - Kellems HBL25W47
Hubbell Wiring Device-Kellems Twist-Lock Elastogrip HBL25W47 Grounding Heavy Duty Locking Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, YellowNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Wiring Device-Kellems Twist-Lock® Elastogrip® Locking Connector, Grounding Heavy Duty, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA L5-15P, Industrial Grade, IP20 Enclosure, 0.3 to 0.65 in Diameter Cord, -40 to 75 deg C, Pressure Screw Terminal, Composite, Yellow, 1.76 in Dia x 4.03 in L Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorYellow
Country of OriginUnited States
Dimensions1.76 x 1.76 x 4.03 in
Enclosure TypeIP20
GradeIndustrial
ManufacturerHubbell
MaterialElastomer
NEMA RatingL6-15R
Number of Poles2
Number of Wires2
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypePressure Screw
TypeGrounding Heavy Duty Cord Mount Watertight
Type / StyleGrounding Heavy Duty
Voltage Rating125 VAC
Documents
Features
Integral weatherproofing shroud seals connection between plug and connectorNylon compression nut keeps water and dust from getting into the body around the cordClear polycarbonate terminal retainerWhite Valox® cord clampSteel nickel plated terminal clampBrass terminal screw, ground screw, contact spring, spring binding plate, ground contactSteel zinc plated cord clamp screw, body holding screwNatural white nylon body contact carrier material15 A, 14 AWG terminal accommodationWithstands 2000 VAC dielectric voltage
Specifications
Standards/Approvals: UL 498| Federal Specification W-C-596|CSA C22.2 No. 42| NEMA WD1/WD5
