Hubbell Wiring Device - Kellems HBL24W47A

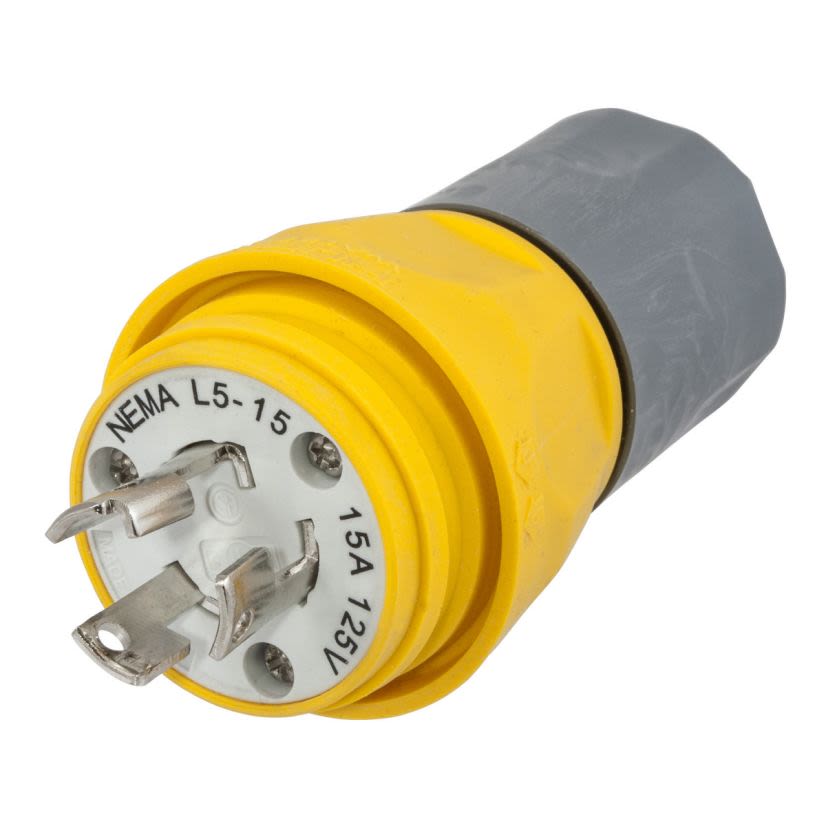

Hubbell Wiring Device-Kellems Twist-Lock HBL24W47A Non-Shrouded Watertight Locking Plug, 125 V AC, 15 A, 2 Poles, 3 Wires, Yellow
Hubbell Wiring Device - Kellems HBL24W47A
Hubbell Wiring Device-Kellems Twist-Lock HBL24W47A Non-Shrouded Watertight Locking Plug, 125 V AC, 15 A, 2 Poles, 3 Wires, YellowNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL24W47A
Werner Part #4051638
UPC783585131245
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL24W47A
Werner Part #4051638
UPC783585131245
Product Description
Hubbell Wiring Device-Kellems Twist-Lock, HBL24W47A, Locking Plug, Non-Shrouded Watertight, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA L5-15P NEMA Rating, Industrial Grade, NEMA 4/4X/6/6P/12/IP65/IP66/IP67 Enclosure, 3/8 to 5/8 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Thermoplastic Elastomer, Yellow, 1.85 in Dia x 3.21 in L Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorYellow
Country of OriginUS
Dimensions1.85 in Dia x 3.21 in L
Enclosure TypeNEMA 4/4X/6/6P/12/IP65/IP66/IP67
GradeIndustrial
Horsepower1/2 hp
ManufacturerHubbell
MaterialThermoplastic Elastomer
NEMA RatingNEMA L5-15P
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeScrew
TypeNon-Shrouded Watertight
Type / StyleNon-Shrouded Watertight
Voltage Rating125 V AC
Documents
Features
- Stainless steel hardware and corrosion-resistant connection points
- Smooth body design minimizes collection points simplifying the wash down process
- Strain relief nut always seals on the body, minimizing debris collection
Specifications
Standards/Approvals: ANSI Certified|CSA C22.2 No. 42|Meets NEMA WD-1/WD-6 Requirements|UL 498
