Hubbell Wiring Device - Kellems HBL2461

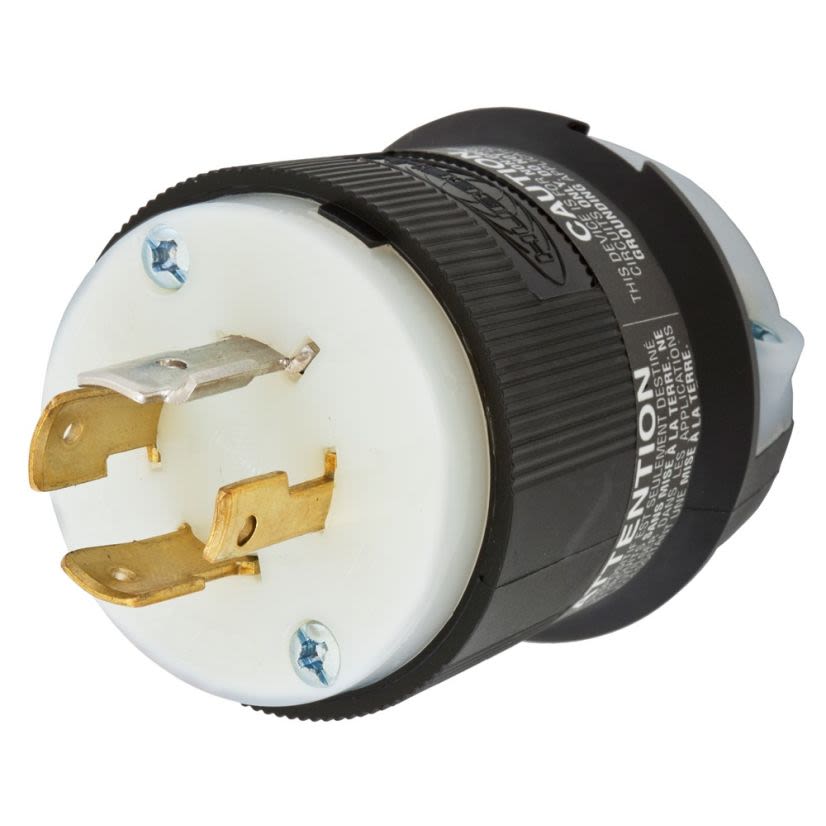

Hubbell Wiring Device-Kellems Twist-Lock Insulgrip HBL2461 Non-Grounding Locking Plug, 347/600 VAC, 20 A, 4 Poles, 4 Wires, Black/White
Hubbell Wiring Device - Kellems HBL2461
Hubbell Wiring Device-Kellems Twist-Lock Insulgrip HBL2461 Non-Grounding Locking Plug, 347/600 VAC, 20 A, 4 Poles, 4 Wires, Black/WhiteNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL2461
Werner Part #593783
UPC783585038438
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL2461
Werner Part #593783
UPC783585038438
Product Description
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, Non-Grounding, 347/600 VAC, 20 A, 4 Pole, 4 Wires, NEMA L20-20P, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 2.33 in Dia x 2.75 in L Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorBlack/White
Country of OriginUnited States
Dimensions2.33 x 2.33 x 2.75 in
Enclosure TypeIP20
GradeIndustrial
ManufacturerHubbell
MaterialNylon
NEMA RatingL20-20P
Number of Poles4
Number of Wires4
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type3-Phase Non-Grounding Cord Mount
Type / StyleNon-Grounding
Voltage Rating347/600 VAC
Documents
Features
Withstands 2000 VAC dielectric voltage14 to 10 AWG wire#10-32 brass (Phillips/slotted/Robertson) terminal screwsMaximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature riseSuperior cord grip design protects terminations from excess strainClear polycarbonate terminal retainerSteel zinc plated cord clamp screw, body holding screwNatural white nylon blade holder material, cord clamp materialBrass blade, terminal screw and ground screw16 to 8 AWG stranded copper wire terminal accommodationClear, funnel shaped wire entry for ease of terminationIntegral dust shield protects wiring chamber from dust or contaminantsIndoor dry unless protected by additional means
Specifications
Standards/Approvals: UL 498|UL94 Flammability Rating|Federal Specification W-C-596|CSA C22.2 No. 42/0.6
