Hubbell Wiring Device - Kellems HBL2421

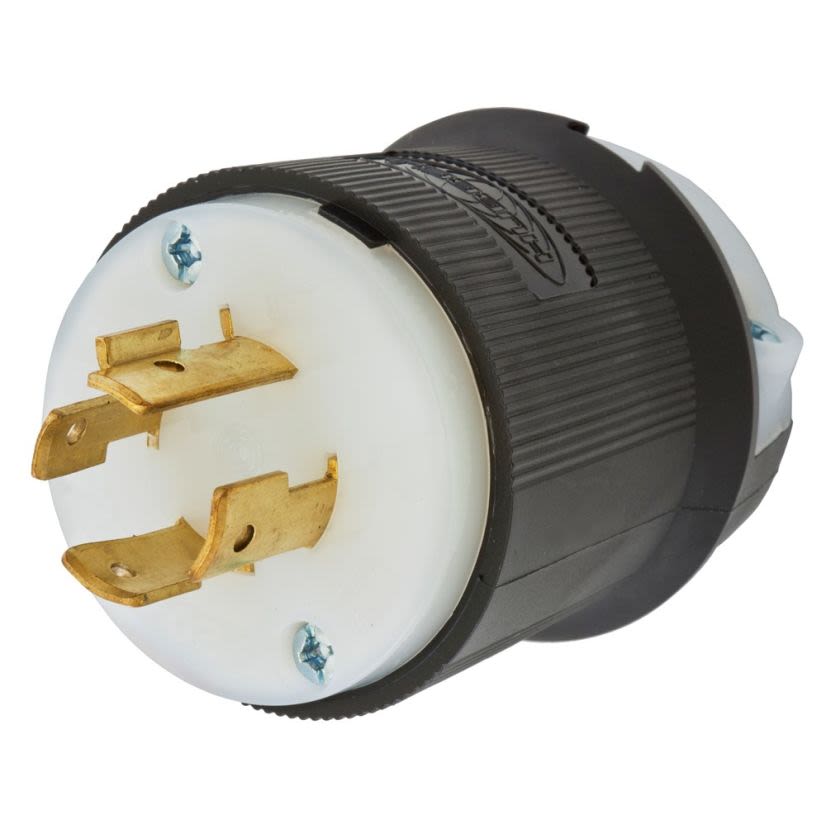

Hubbell Wiring Device-Kellems Twist-Lock Insulgrip HBL2421 Grounding Locking Plug, 250 VAC, 20 A, 3 Poles, 4 Wires, Black
Hubbell Wiring Device - Kellems HBL2421
Hubbell Wiring Device-Kellems Twist-Lock Insulgrip HBL2421 Grounding Locking Plug, 250 VAC, 20 A, 3 Poles, 4 Wires, BlackIn Stock: 11more info
|
BrandHubbell Wiring Device - Kellems
MFG #HBL2421
Werner Part #38883
UPC783585038193
In Stock: 11more info
|
BrandHubbell Wiring Device - Kellems
MFG #HBL2421
Werner Part #38883
UPC783585038193
Product Description
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Plug, Grounding, 250 VAC, 20 A, 3 hp, 3 Pole, 4 Wires, NEMA L15-20P, Industrial Grade, IP20 Enclosure, 0.35 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black, 2.33 in Dia x 2.75 in L Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorBlack/White
Country of OriginUnited States
Dimensions2.33 x 2.33 x 2.75 in
Enclosure TypeIP20
GradeIndustrial
Horsepower3 hp
ManufacturerHubbell
MaterialNylon
NEMA RatingL15-20P
Number of Poles3
Number of Wires4
Temperature Rating-40 to 75 deg C
Terminal TypeScrew
Type3-Phase Grounding Cord Mount
Type / StyleGrounding
Voltage Rating250 VAC
Documents
Features
Withstands 2000 VAC dielectric voltage14 to 10 AWG wire#10-32 brass (Phillips/slotted/Robertson) terminal screwsMaximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature riseSuperior cord grip design protects terminations from excess strainClear polycarbonate terminal retainerSteel zinc plated cord clamp screw, body holding screwNatural white nylon blade holder material, cord clamp materialBrass blade, terminal screw and ground screw16 to 8 AWG stranded copper wire terminal accommodationReduces exposure to arcing when connecting or disconnecting under loadImpact resistant shroud protects blades against bending and breakingIndoor dry unless protected by additional means
Specifications
Standards/Approvals: UL 498|UL94 Flammability Rating|Federal Specification W-C-596|CSA C22.2 No. 42/0.6
