Hubbell Wiring Device - Kellems HBL23005GB

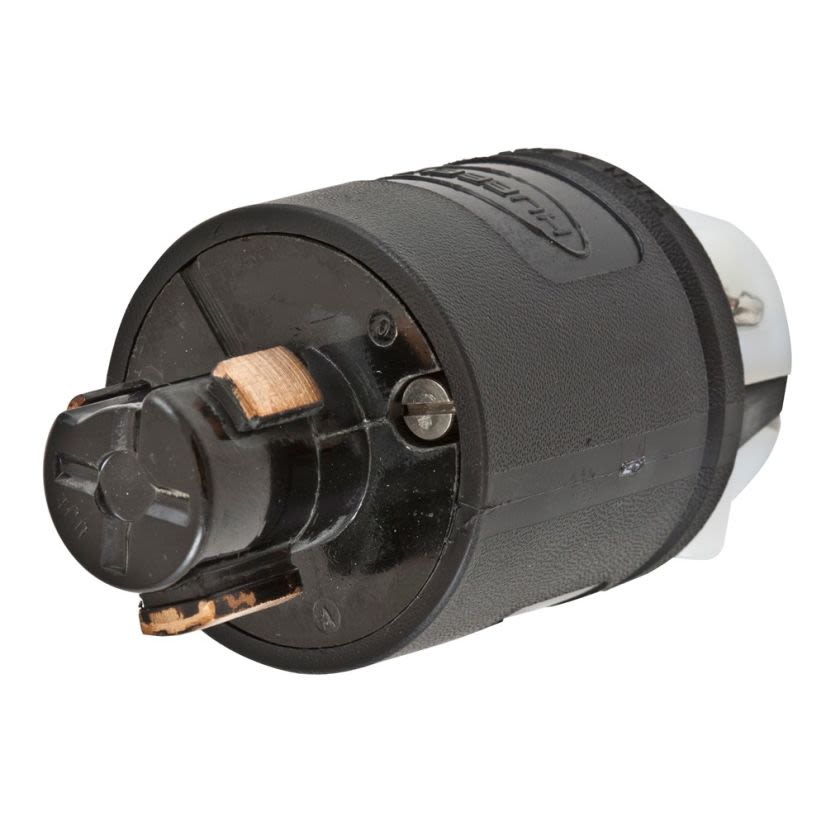

Hubbell Wiring Device-Kellems Hubbellock HBL23005GB Heavy Duty Grounding Locking Plug, 10/20 A, 2 Poles, 3 Wires, Black
Hubbell Wiring Device - Kellems HBL23005GB
Hubbell Wiring Device-Kellems Hubbellock HBL23005GB Heavy Duty Grounding Locking Plug, 10/20 A, 2 Poles, 3 Wires, BlackNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL23005GB
Werner Part #605999
UPC783585017389
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL23005GB
Werner Part #605999
UPC783585017389
Product Description
Wiring Device-Kellems Hubbellock® Locking Plug, Heavy Duty Grounding, 10/20 A, 2 Poles, 3 Wires, Industrial Grade, IP30 Enclosure, 0.3 to 0.65 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black, 1-23/32 in Dia x 3-7/32 in L
Attributes
Documents
Features
Specifications
Attributes
ColorBlack/White
Country of OriginUnited States
Dimensions1.72 x 2.31 x 3.22 in
Enclosure TypeIP30
GradeIndustrial
ManufacturerHubbell
MaterialNylon
NEMA RatingNON-NEMA
Number of Poles2
Number of Wires3
Temperature Rating-40 to 75 deg C
Terminal TypePressure Screw
Type1-Phase Heavy Duty Grounding Cord Mount
Type / StyleHeavy Duty Grounding
Documents
Features
Withstands 2000 VAC dielectric voltage14 to 10 AWG wire12 AWG terminal accommodationMaximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature riseBrass blade and 0.02 in brass terminal clampTerminals identified in accordance with UL 498 (X, Y, Z, white, green)Natural white nylon cord clamp and black thermoset blade holder material#10-32 brass (white finish on neutral screw when used) multi-drive terminal screw#10-32 brass (green finish) multi-drive ground screw20 A at 125 VAC, 10 A at 250 VDC/480 VAC multi ratingIndoor dry unless protected by additional means
Specifications
Standards/Approvals: UL 498, UL 94 Flammability Rating, CSA 22.2 No. 0.6 Certified
