Hubbell Wiring Device - Kellems HBL1224LA

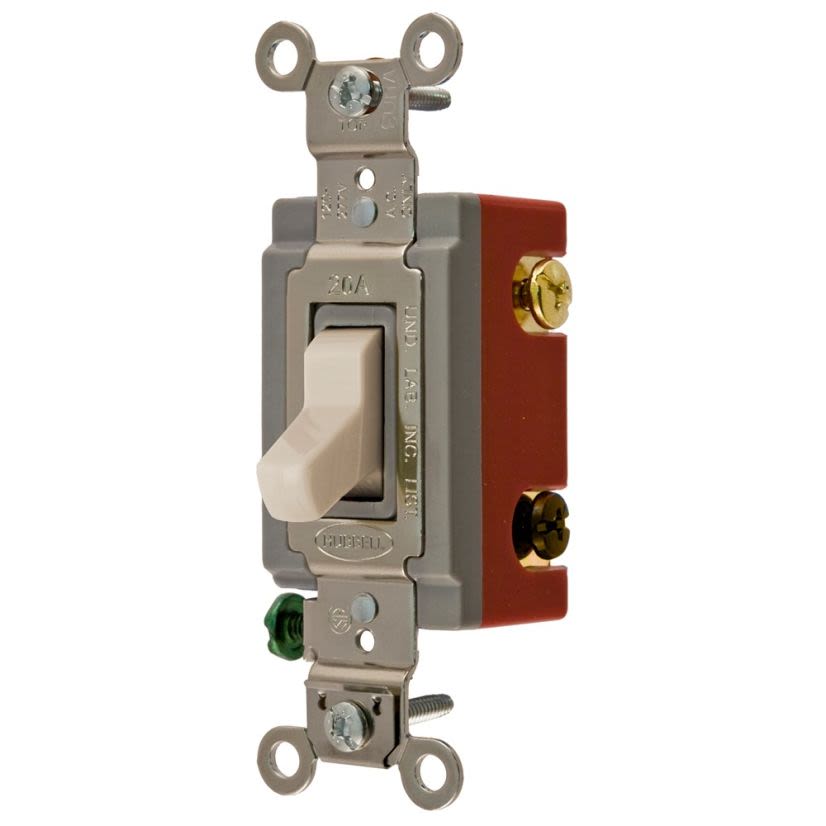

Hubbell Wiring Device-Kellems HBL1224LA 4-Way Extra Heavy Duty Industrial Grade AC Toggle Switch, 120 to 277 VAC, 20 A, 2 hp Power Rating
Hubbell Wiring Device - Kellems HBL1224LA
Hubbell Wiring Device-Kellems HBL1224LA 4-Way Extra Heavy Duty Industrial Grade AC Toggle Switch, 120 to 277 VAC, 20 A, 2 hp Power RatingNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL1224LA
Werner Part #4068365
UPC783585189147
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #HBL1224LA
Werner Part #4068365
UPC783585189147
Product Description
Hubbell Wiring Device-Kellems AC Toggle Switch, 4-Way Extra Heavy Duty Industrial Grade, Series: HBL, 120 to 277 VAC, 20 A, 2 hp Power, 2 Pole, Toggle Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Thermoset, Light Almond, Environmental Conditions: -40 to 75 deg C, 4.06 x 1.31 x 1.87 in
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Actuator TypeToggle
ColorLight Almond
Country of OriginCN
Dimensions4.06 x 1.31 x 1.87 in
Electrical Ratings2 hp
ManufacturerHubbell
MaterialThermoset
Mounting TypeThreaded
Number of Poles2
SeriesHBL
Temperature Rating-40 to 75 deg C
Terminal TypeBack/Side Wire
Type4-Way Extra Heavy Duty Industrial Grade
Type / Style4-Way Extra Heavy Duty Industrial Grade
Voltage Rating120 to 277 V AC
Documents
Applications
Industrial Applications
Warranty
Limited
Features
- Large brass binding head screws with deep slots
- Abuse resistant nylon toggle
- Strip gauge for accurate wiring
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|UL Listed|CSA Certified|Federal Specification WS896|UL94 V-2 Flammability Rating
