Hubbell Wiring Device - Kellems DRUB15CB5

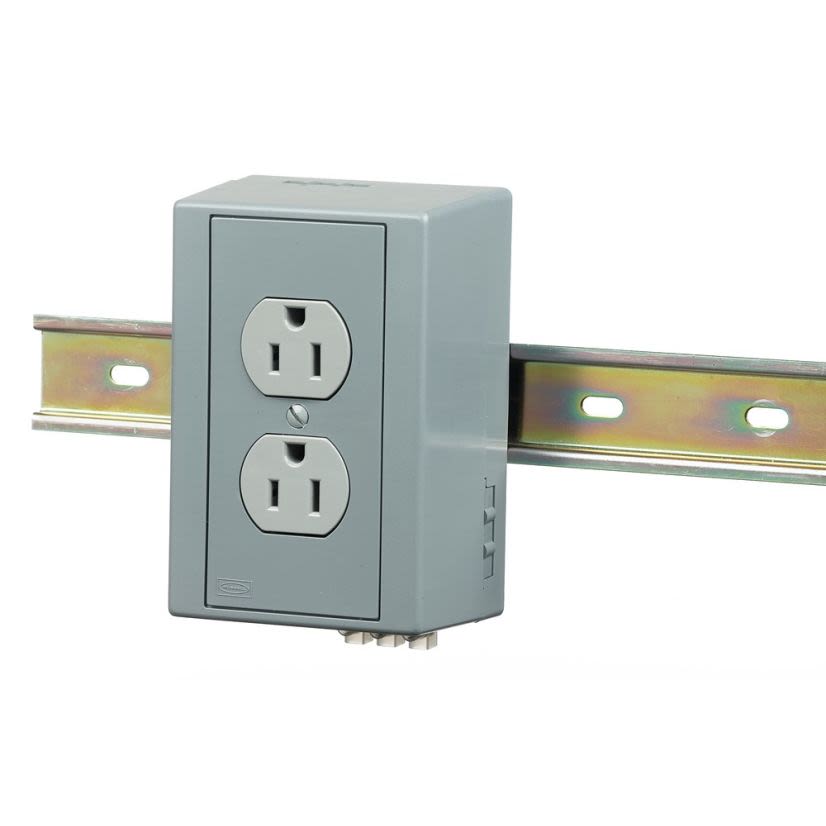

Hubbell Wiring Device-Kellems Safety-Shroud DRUB15CB5 Duplex Grounding Utility Box Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
Hubbell Wiring Device - Kellems DRUB15CB5
Hubbell Wiring Device-Kellems Safety-Shroud DRUB15CB5 Duplex Grounding Utility Box Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, GrayNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #DRUB15CB5
Werner Part #38688
UPC783585108018
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #DRUB15CB5
Werner Part #38688
UPC783585108018
Product Description
Wiring Device-Kellems Safety-Shroud® Utility Box Receptacle, Duplex Grounding, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R, Industrial Grade, -40 to 75 deg C, Side Wired Terminal, Composite, Gray, 5.62 in H x 3.31 in W x 2.43 in D Dimensions
Attributes
Documents
Features
Specifications
Attributes
ColorGray
Country of OriginUnited States
Dimensions5.62 in L x 3.31 in W x 2.54 in H
GradeIndustrial
Horsepower1/2 hp
ManufacturerHubbell
MaterialComposite
NEMA Rating5-15R
Number of Poles2
Number of Wires3
Package TypeEACH
Temperature Rating-40 to 75 deg C
Terminal TypeSide Wire
Type1-Outlet Duplex Grounding Molded and Fabricated DIN Rail Mount
Type / StyleDuplex Grounding
Voltage Rating125 VAC
Documents
Features
Hubbell's DIN rail utility box offers a labor saving way to provide utility power to any control cabinetInstalling the rail utility box is as easy as snapping the box onto a 35 mm DIN rail and connecting the line, neutral and ground wires to the terminal blockIt provides utility power to any control cabinetPre-wired kits are available for end-user customizationPVC cover, base and plug materialVertical DRUB mountingComplete unit with 5A circuit breaker DIN rail utility box varietyDuplex outlet, 1 phase, vertical, DIN rail, panel mounting, single gang
Specifications
Standards/Approvals: UL 498, UL 514
