Hubbell Wiring Device - Kellems DR15I

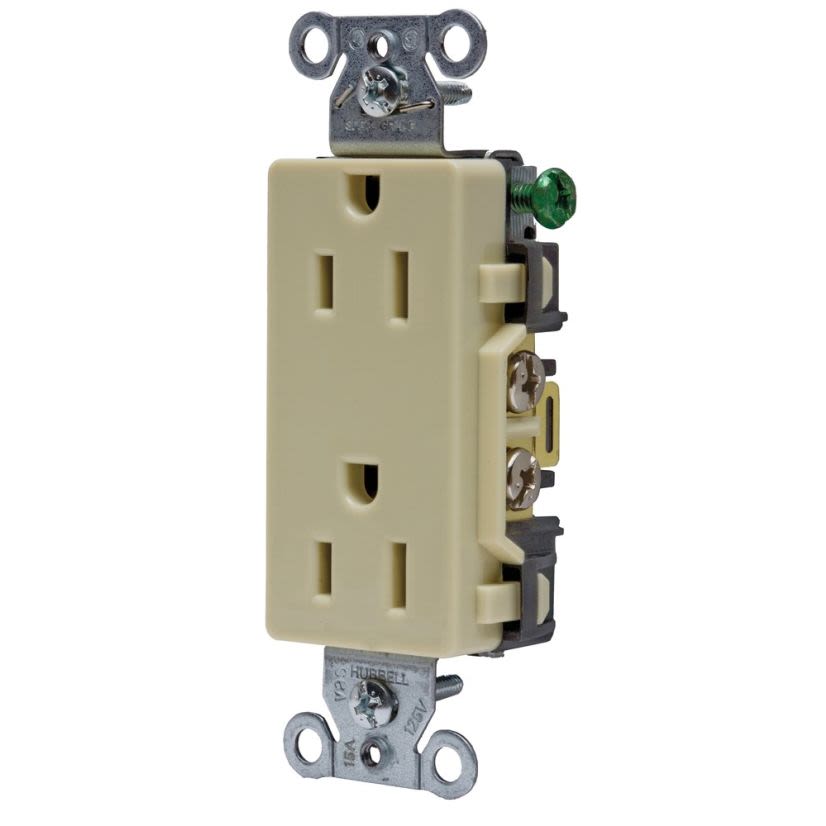

Hubbell Wiring Device-Kellems StyleLine DR15I Decorator Duplex Self-Grounding Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
Hubbell Wiring Device - Kellems DR15I
Hubbell Wiring Device-Kellems StyleLine DR15I Decorator Duplex Self-Grounding Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, IvoryNon-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #DR15I
Werner Part #3822609
UPC783585127804
Non-stock product. Available to order - lead time may vary.
BrandHubbell Wiring Device - Kellems
MFG #DR15I
Werner Part #3822609
UPC783585127804
Product Description
Wiring Device-Kellems StyleLine® Straight Blade Receptacle, Duplex Self-Grounding, Series: Decorator, 125 VAC, 15 A, 1/2 hp, 2 Poles, 3 Wires, NEMA 5-15R, Commercial/Specification Grade, -40 to 75 deg C, Back/Side Wired Terminal, Composite/Thermoplastic, Ivory, 3.281 in H x 1.295 in W x 1.067 in D
Attributes
Documents
Features
Specifications
Attributes
ColorIvory
Country of OriginChina
Dimensions1.29 x 1.06 x 3.28 in
GradeCommercial/Specification
Horsepower1/2 hp
ManufacturerHubbell
MaterialNylon
NEMA Rating5-15R
Number of Poles2
Number of Wires3
SeriesDecorator
Temperature Rating-40 to 75 deg C
Terminal TypeSide Wired
Type1-Phase Duplex Self-Grounding Screw Mount
Type / StyleDuplex Self-Grounding
Voltage Rating125 VAC
Documents
Features
0.03 in brass power contact0.04 in galvanized steel mounting strapStainless steel auto ground clipSteel, zinc plated mounting screwWithstands 2000 VAC dielectric voltageCertified for current interrupting at full rated currentTerminals identified in accordance with UL 498 (brass, white, green)14 to 10 AWG solid or stranded copper conductor terminal accommodationRatings are a permanent part of the device product identification#8-32 brass, multiple drive terminal screw#8-32 brass, multiple drive ground screwAesthetic Style Line® decorator designSmooth faceTriple wipe contactsIndoor dry unless protected by additional means
Specifications
Standards/Approvals: UL 498, File No. E2186 Listed, UL 94-V-2 Flammability Rating|CSA C22.2, No. 42|Federal Specification W-C-596|NEMA WD1/WD5/WD6 Compliant
