HPS PH1500MQMJ

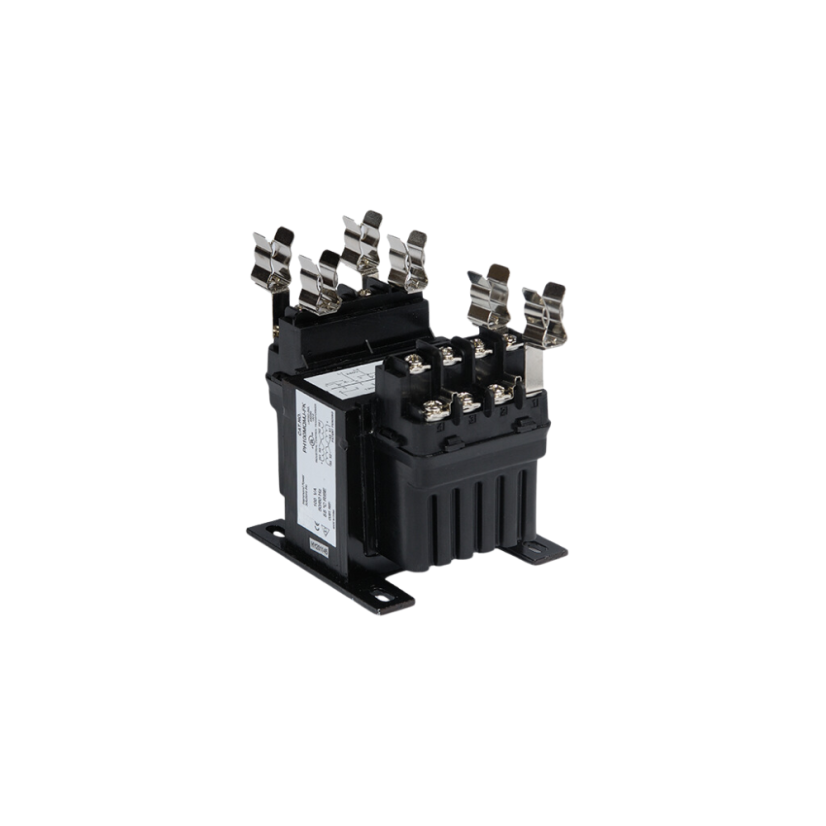

HPS PH1500MQMJ Imperator Industrial Molded Open Style Control Transformer, 240/480 V AC Primary, 120/240 VAC Secondary, 1500 VA Power Rating, 50/60 Hz, 1 Phase
HPS PH1500MQMJ
HPS PH1500MQMJ Imperator Industrial Molded Open Style Control Transformer, 240/480 V AC Primary, 120/240 VAC Secondary, 1500 VA Power Rating, 50/60 Hz, 1 PhaseIn Stock: 1more info
|
BrandHPS
MFG #PH1500MQMJ
Werner Part #3826162
UPC803423078027
In Stock: 1more info
|
BrandHPS
MFG #PH1500MQMJ
Werner Part #3826162
UPC803423078027
Product Description
HPS, PH1500MQMJ, Control Transformer, Industrial Molded Open Style, Series: Imperator, 240/480 V AC Primary, 120/240 VAC Secondary, 1500 VA Power, 50/60 Hz Frequency, 1 ph, 12.5/6.25 A Maximum, Screw Connection, Panel Mounting, 130 deg C Insulation, 30 deg C, 5.25 in L x 8.19 in W x 4.94 in H Dimensions
Attributes
Documents
Applications
Features
Warranty
Attributes
ClassClass B
ColorBlack
Connection TypeScrew
Country of OriginCN
Dimensions5.25 in L x 8.19 in W x 4.94 in H
Frequency Rating50/60 Hz
Insulation Type130 deg C
ManufacturerHammond Power Solutions
Maximum Amperage Rating12.5/6.25 A
Mounting TypePanel
Phase1
Power Rating1500 VA
Primary Voltage240/480 V AC
Secondary Voltage120/240 V AC
SeriesImperator
Temperature Rating30 deg C
TypeIndustrial Molded Open Style
Type / StyleControl
Documents
Applications
Automation, Panel Shops, Machines, Panel Boards, Solenoids, Control and Timer Applications
Features
- Constructed with high quality silicon steel laminations that provide optimum performance and reliability
- Encapsulated coils encased in a custom injection molded cover, protect coils and terminations from moisture, dirt and other industrial airborne contaminants
- Mounting feet made of heavy steel and welded or bolted to the core, these mounting feet provide superior strength in a compact design
- Combination slot/Philips #6 screw, complete with SEMS washer termination
- Optional finger safe terminal covers available on all units
- Terminal connection numbers molded into terminal block and correspond to nameplate and wiring diagrams, make connecting the HPS Imperator quick and simple
- SEMS washer allows for easy connection of supply or load wires with or without terminal connectors
- Innovative terminal block design provides for easy hook-up and installation of fuse clip
- Custom injection molded coil cover with its unique "fin shaped" design combine superior cooling properties with a clean, bold look
- 240 x 480, 230 x 460, 220 x 440 V primary volt
- 120 x 240, 115 x 230, 110 x 220 V secondary volt
- Encapsulated copper wound coils encased in a custom injection molded cover
- Secondary fuse clips, fuse clip mounting screws and primary and secondary voltage links/jumpers supplied with transformers
- 40 deg C maximum
Warranty
Life time
