General Electric THHQB1130

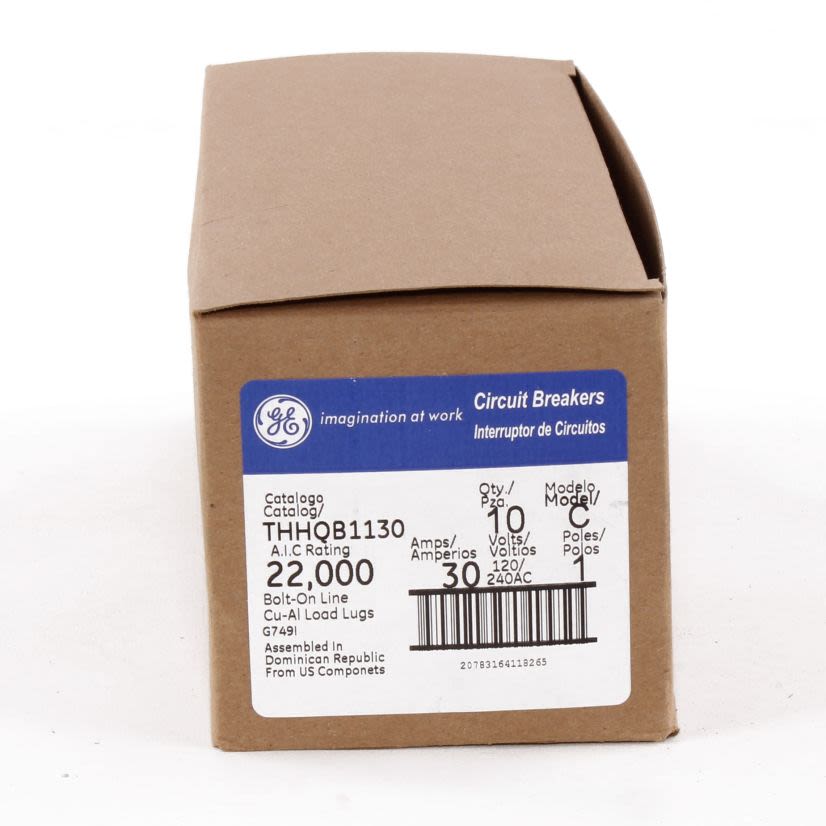

GE Q-Line® THHQB1130 Type THHQB Compact Molded Case Circuit Breaker, 120/240 VAC, 30 A, 22 kA Interrupt, 1 Poles, LI/Non-Interchangeable Thermal Magnetic Trip
General Electric THHQB1130
GE Q-Line® THHQB1130 Type THHQB Compact Molded Case Circuit Breaker, 120/240 VAC, 30 A, 22 kA Interrupt, 1 Poles, LI/Non-Interchangeable Thermal Magnetic TripNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
GE Q-Line® Molded Case Circuit Breaker, Type THHQB Compact, 120/240 VAC, 30 A, 50/60 Hz Frequency, 22 kA Interrupt, Q-Line Frame, LI/Non-Interchangeable Thermal Magnetic Trip, 1 Pole, 1 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 14 to 8 AWG, 12 to 8 AWG Wire, Bolt-On Mounting, 10 to 50 deg C, 3-9/32 in H x 1 in W x 2-3/8 in D Dimensions, Plastic
Attributes
Documents
Features
Attributes
Actuator TypeRotary Handle
Connection TypeLoad Lug
Country of OriginUnited States
Dimensions5.12 in L x 7.69 in W x 11.47 in H
FrameQ-Line
Frequency Rating50/60 Hz
Horsepower144 hp, 150 hp
Insulation TypeClass J
Interrupt Rating22 kA
ManufacturerGeneral Electric
Mounting TypeDIN Rail
Number of Poles3
Phase3 ph
SeriesR9 Series
Short Circuit Current Rating200 kA
Size of Wire14 to 8 AWG, 12 to 8 AWG
Terminal TypeLug
Trip TypeLI/Non-Interchangeable Thermal Magnetic
TypeL -Frame Fusible
Type / StyleType THHQB Compact
Voltage120/240 VAC
Features
Molded case is molded from high mechanical and high dielectric strength engineered plasticTrip indication is shown by handle position midway between ON and off to reset the trip mechanism, move the handle to extreme off then to ON positionQuick-make, quick-break, trip-free mechanism minimizes arcing during breaker operation, contacts cannot be ''teased'' into positionTrip-free mechanism is independent of manual handle control, the breaker trips under short circuit or overload, even though the operating handle is held in ON positionVERIFIER™ "twist-to-trip" and ''push-to-trip'' mechanically simulates over current tripping through actuation of linkages not operated by the on-off handleCommon trip bar assures instant disconnect of all conductors when an overload or short circuit occurs on any one conductor in the circuit or an accessory trip device operatesSilver alloy contacts combine the conductive properties of silver with other elements for clean, positive electrical contacting, pitting and burning are minimized for longer contact lifeArc chutes of heat absorbing, insulating material and metal grid plates quickly ''extinguish'' arcsUL listed lugs for copper or aluminum cable, at full frame rating, easy access and simple, straight in wiring22 kA at 120 VAC, 22 kA at 120/240 VAC interrupt rating
