Crouse-Hinds series T39

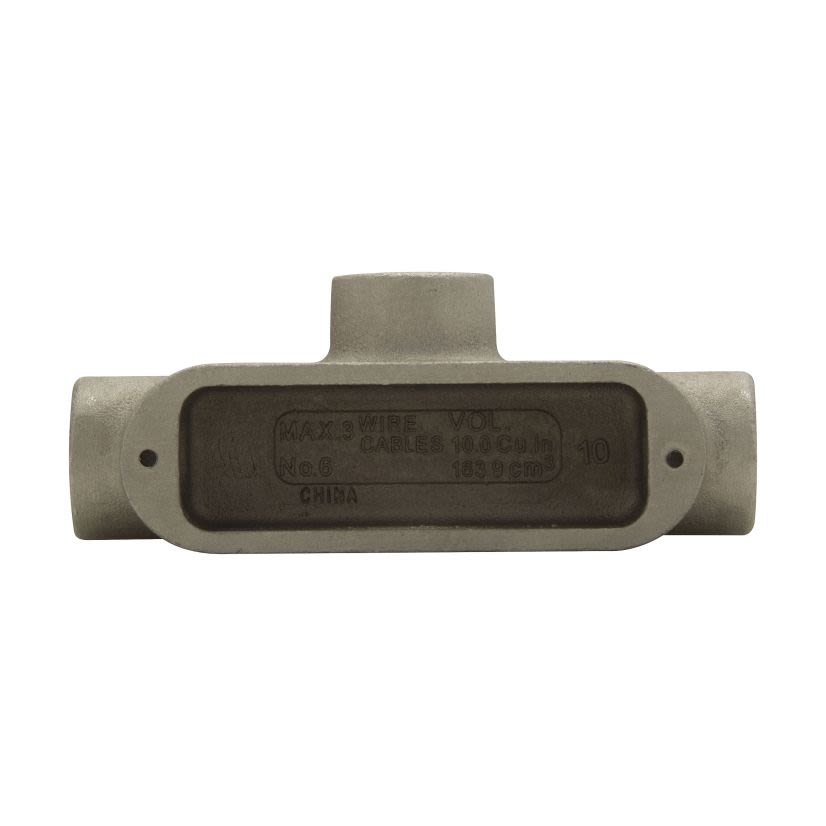

Crouse-Hinds Condulet T39 Type T Conduit Outlet Body, 1 in Hub, Mark 9 Form, 15 cu-in Capacity, Copper-Free Aluminum, Natural
Crouse-Hinds series T39
Crouse-Hinds Condulet T39 Type T Conduit Outlet Body, 1 in Hub, Mark 9 Form, 15 cu-in Capacity, Copper-Free Aluminum, NaturalIn Stock: 4more info
|
BrandCrouse-Hinds series
MFG #T39
Werner Part #26911
UPC782274627304
In Stock: 4more info
|
BrandCrouse-Hinds series
MFG #T39
Werner Part #26911
UPC782274627304
Product Description
Crouse-Hinds Condulet Conduit Outlet Body, Type T, 1 in Hub, 3 Hubs, 15 cu-in Capacity, Mark 9 Form, NEMA 3R Enclosure, Thread Connection, Copper-Free Aluminum, Natural, 6-19/32 in L x 2-5/8 in W x 1-7/8 in H Dimensions
Attributes
Documents
Applications
Features
Attributes
Capacity15 cu-in
Connection TypeThread
Country of OriginSri Lanka
Dimensions6-19/32 in L x 2-5/8 in W x 1-7/8 in H
Enclosure TypeNEMA 3R
FinishNatural
FormMark 9
GTIN782275000000
Hub Size1 in
Length6.59 inch
ManufacturerEaton
MaterialCopper-Free Aluminum
NEMA Rating12
Number of Hubs3
Trade Size1 inch
TypeType T
Documents
Applications
For use in rigid conduit systems and industrial facilities and factories
Features
- Act as pull outlets for conductors being installed
- Provide openings for making splices and taps in conductors
- Connect conduit sections
- Provide taps for branch conduit runs
- Make 90 deg bends in conduit runs
- Provide for access to conductors for maintenance and future system changes
- Mark 9 bodies provide more room for heavier conductors
- Conduit hubs have tapered threads and feature integral bushing for protection of wire insulation
- Roomy interiors deep body cavity provides increased volume allowing higher wiring capacity
- Smooth, rounded integral bushing in each hub protects conductor installation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Completely interchangeable with Crouse-Hinds mark 9 bodies, gaskets and covers
- Equivalent FM9 and mark 9 units have identical applications and installation dimensions
- Smooth hub bushings and cover openings protect conductor insulation, smooth hub openings allow easy conduit joining
- Stainless steel pan head cover screws secure cover to body and provide superior screwdriver seating and torque, cover screws are captive to prevent loss in sizes 1/2 thru 2 in
- Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
