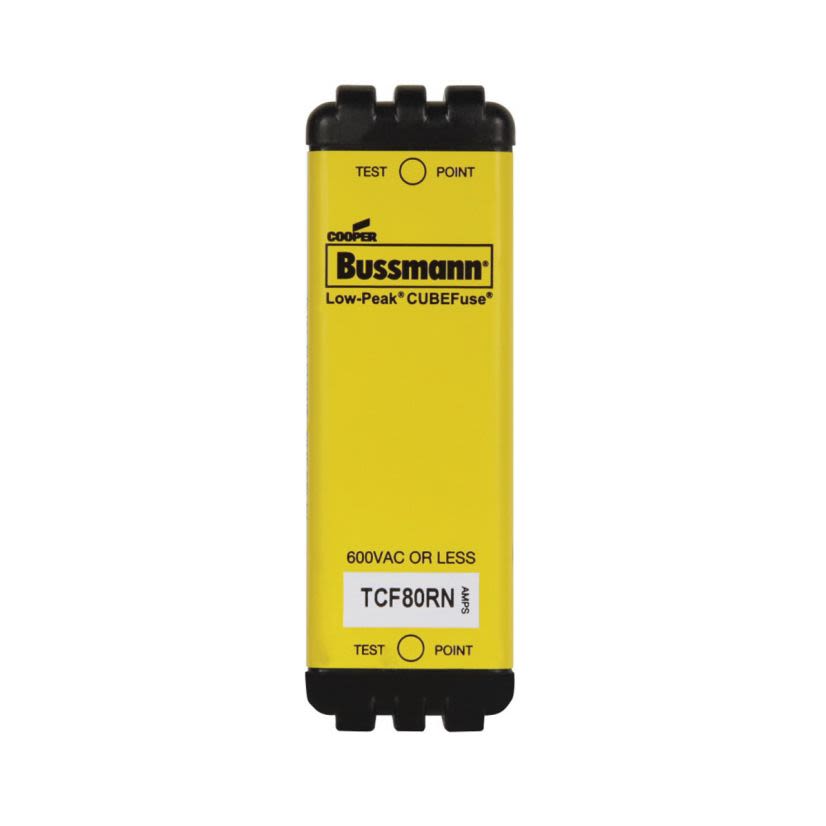

Bussmann Series TCF80RN
Edison Low-Peak CUBEFuse TCF80RN Current Limiting Inrush Current Withstand Time Delay Fuse, 80 A, 600 VAC, 300 VDC, 300/100 kA Interrupt, Class: CF, Square Body
Bussmann Series TCF80RN
Edison Low-Peak CUBEFuse TCF80RN Current Limiting Inrush Current Withstand Time Delay Fuse, 80 A, 600 VAC, 300 VDC, 300/100 kA Interrupt, Class: CF, Square BodyNon-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #TCF80RN
Werner Part #3883846
UPC051712236171
Non-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #TCF80RN
Werner Part #3883846
UPC051712236171
Product Description
Edison Low-Peak CUBEFuse Time Delay Fuse, Current Limiting Inrush Current Withstand, Series: TCF, 80 A, 600 VAC, 300 VDC, 300/100 kA Interrupt, Class: CF, 10 s Response, Radial Blade Plug-In Terminal, DIN Rail Mounting, Square Body, Dual Element, Glass Filled Polyethersulfone, 3.01 in L x 1 in W x 1.26 in H Body
Attributes
Documents
Applications
Features
Attributes
Body Size3.01 in L x 1 in W x 1.26 in H
Body TypeSquare
ClassCF
Country of OriginSri Lanka
ElementDual
Interrupt Rating300/100 kA
ManufacturerEaton
MaterialGlass Filled Polyethersulfone
Mounting TypeDIN Rail
Response Time10 s
SeriesTCF
Terminal TypeRadial Blade Plug-In
Type / StyleCurrent Limiting Inrush Current Withstand
Voltage Rating600 V AC/300 V DC
Documents
Applications
Electrical Panel Boards, Machinery Disconnects, Industrial Control and Required Finger Safe System Applications
Features
- The world's first finger safe power fuse system
- Smallest footprint of any class fuse including class J, CC, T and RK
- The indicating version features easyID open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults to help reduce destructive thermal and magnetic forces
- True dual element fuse construction with a minimum of 10 sec time delay at 500% of rating
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- High 300 kA interrupt rating safely interrupts virtually any fault
- No venting of arc or molten metal and gases during opening
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides type 2 "No Damage" in protection for IEC motors starters when properly sized
- Easy selective coordination with any other Bussmann series Low-Peak class CC, J, L or RK1 fuse with simple 2:1 amp ratio between upstream and downstream fuses
