Bussmann Series T60200-1C

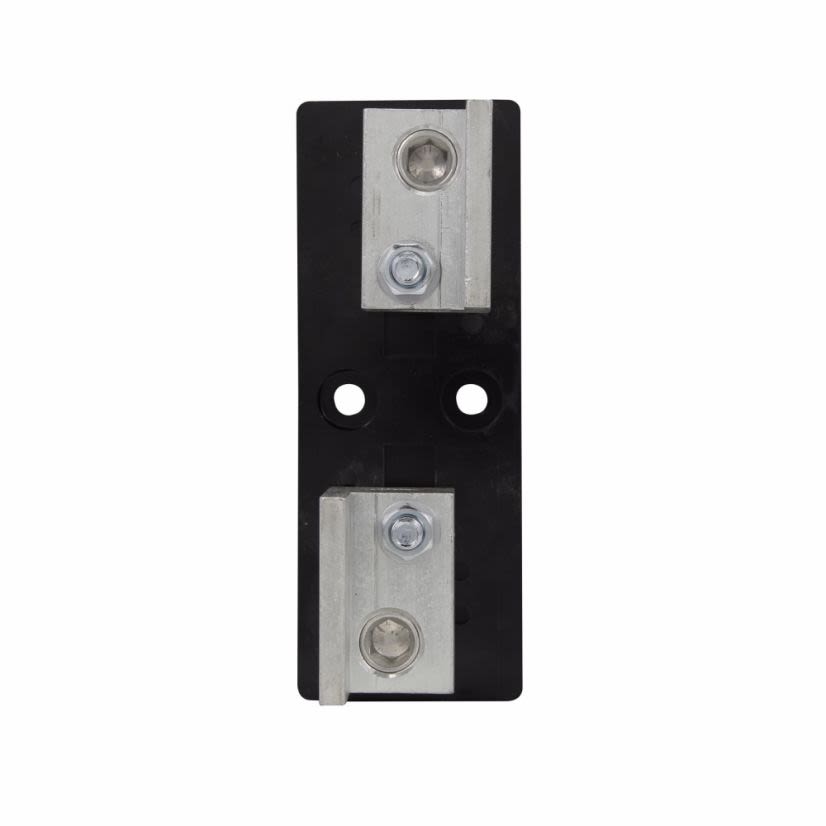

Edison T60200-1C T600 Open Style Fuse Block, 600 VAC/VDC, 101 to 200 A, T Class, 6 AWG to 250 kcmil Wire, 1 Pole
Bussmann Series T60200-1C
Edison T60200-1C T600 Open Style Fuse Block, 600 VAC/VDC, 101 to 200 A, T Class, 6 AWG to 250 kcmil Wire, 1 PoleNon-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #T60200-1C
Werner Part #23156
UPC051712149457
Non-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #T60200-1C
Werner Part #23156
UPC051712149457
Product Description
Edison Fuse Block, Open Style, Series: T600, 600 VAC/VDC, 101 to 200 A, 1 Poles, Class: T, Fuse Holder Code: BP, Box Lug, 6 AWG to 250 kcmil Wire, Chassis Mount, 3-1/4 in Fuse Length, 0.88 in Fuse Dia, For Use With: JJS Class T Fuse, Glass Polyester, Black, 6 in L x 2.25 in W x 3.06 in H
Attributes
Documents
Applications
Features
Attributes
ClassT
ColorBlack
Connection TypeBox Lug
Country of OriginMX
Dimensions6 in L x 2.25 in W x 3.06 in H
Fuse Diameter0.88 in
Fuse Holder CodeBP
Fuse Length3-1/4 in
ManufacturerEaton
MaterialGlass Polyester
Mounting TypeChassis
Number of Poles1
SeriesT600
Size of Wire6 AWG to 250 kcmil
Suitable For Use WithJJS Class T Fuse
Type / StyleOpen Style
Voltage Rating600 V AC/DC
Documents
Applications
For 600 VAC/VDC or less control systems and industrial control circuits
Features
- Short circuit current rating of 200 kA rms symmetrical
- Class T fuse blocks have a small foot print, providing substantial space savings in equipment
- 6 AWG to 250 kcmil copper/aluminum wire
