Bussmann Series T60060-3CR

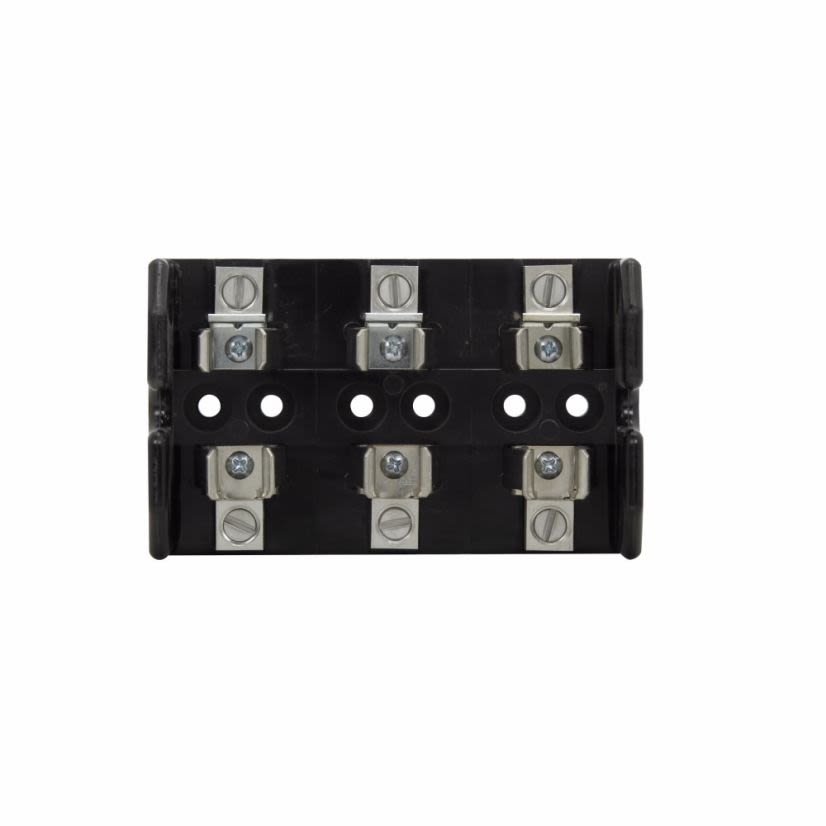

Edison T60060-3CR Open Style Fuse Block, 600 VAC/VDC, 31 to 60 A, T Class, 14 to 2 AWG Wire, 3 Poles
Bussmann Series T60060-3CR
Edison T60060-3CR Open Style Fuse Block, 600 VAC/VDC, 31 to 60 A, T Class, 14 to 2 AWG Wire, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #T60060-3CR
Werner Part #23151
UPC051712148139
Non-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #T60060-3CR
Werner Part #23151
UPC051712148139
Product Description
Edison Fuse Block, Open Style, Series: T600, 600 VAC/VDC, 31 to 60 A, 3 Poles, Class: T, Fuse Holder Code: BM, Box Lug, 14 to 2 AWG Wire, Chassis Mount, 1.56 in Fuse Length, 1 in Fuse Dia, For Use With: JJS Class T Fuse, Glass Polyester, Black, 2.94 in L x 4.86 in W x 1.75 in H
Attributes
Documents
Applications
Features
Attributes
Amps31 to 60 A
ClassT
ColorBlack
Connection TypeBox Lug
Country of OriginMX
FuseHolder Code: BM
Fuse Diameter1 in
Fuse Length1.56 in
ManufacturerEaton
MaterialGlass Polyester
Number of Poles3
Type / StyleOpen Style
Voltage600 VAC/VDC
Documents
Applications
For 600 VAC/VDC or less control systems and industrial control circuits
Features
- Short circuit current rating of 200 kA rms symmetrical
- Class T fuse blocks have a small foot print, providing substantial space savings in equipment
- 14 to 2 AWG copper/aluminum wire
