Bussmann Series JM60100-1MW14

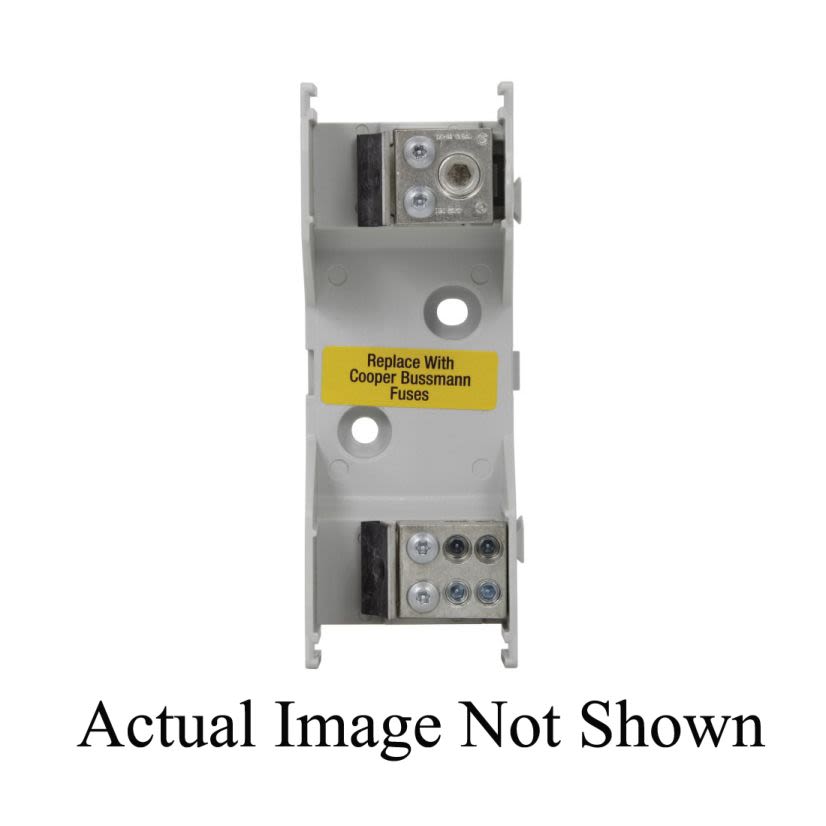

Edison JM60100-1MW14 JM600 Fuse Block, 600 VAC, 70 to 100 A, J Class, 14 to 1/0 AWG Wire, 1 Pole
Bussmann Series JM60100-1MW14
Edison JM60100-1MW14 JM600 Fuse Block, 600 VAC, 70 to 100 A, J Class, 14 to 1/0 AWG Wire, 1 PoleNon-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #JM60100-1MW14
Werner Part #4017971
UPC051712491075
Non-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #JM60100-1MW14
Werner Part #4017971
UPC051712491075
Product Description
Edison Fuse Block, Series: JM600, 600 VAC, 70 to 100 A, 1 Poles, Class: J, Lug, 14 to 1/0 AWG Wire, Panel Mount, 4.63 in Fuse Length, 1.13 in Fuse Dia, -40 to 120 deg C, For Use With: Low-Peak LPJ, Limitron JKS and DFJ Knife Blade Fuse, Thermoplastic, Gray, 5.5 in L x 2 in W x 2.8 in H
Attributes
Documents
Applications
Features
Attributes
ClassJ
ColorGray
Connection TypeLug
Country of OriginMX
Dimensions5.5 in L x 2 in W x 2.8 in H
Fuse Diameter1.13 in
Fuse Length4.63 in
ManufacturerEaton
MaterialThermoplastic
Mounting TypeSurface
Number of Poles1
SeriesJM600
Size of Wire(1) 14 to 1/0 AWG Cu/Al Line, (4) 14 to 4 AWG Cu, 8 to 4 AWG Al, (8)14 to 10 AWG Cu Load
Suitable For Use WithLow-Peak LPJ, Limitron JKS and DFJ Knife Blade Fuse
Temperature Rating-40 to 120 deg C
Type / StyleFuse Block
Voltage Rating600 V AC
Documents
Applications
Electrical Assemblies, Panels and EOEMs Applications
Features
- Combination power distribution block and fuse block reduces wire connections and total panel components, using up to 57% less panel space and reducing installation time and labor by an average of 33 percent when compared with traditional fuse block/power distribution block solutions
- A 200 kA withstand rating helps achieve a higher assembly short circuit current rating (SCCR) for compliance with NEC sections 110.10, 409.110(4), 409.22, 440.4(B), 670.3(A)(4) and 670.5
- To reduce inventory, assembly time and labor, modular 1-pole blocks snap together for tool less assembly of multiple poles at point of use
- Panel mount versatility allows one product to be used for multiple applications without incurring additional inventory cost
- Design uses fewer wire connections, reducing watts loss and overall operating temperature of the panel
- (1) 14 to 1/0 AWG copper/aluminum for line side, (4) 14 to 4 AWG copper, 8 to 4 AWG aluminum, (8) 14 to 10 AWG copper for load side wire
