Bussmann Series GBB-3-R

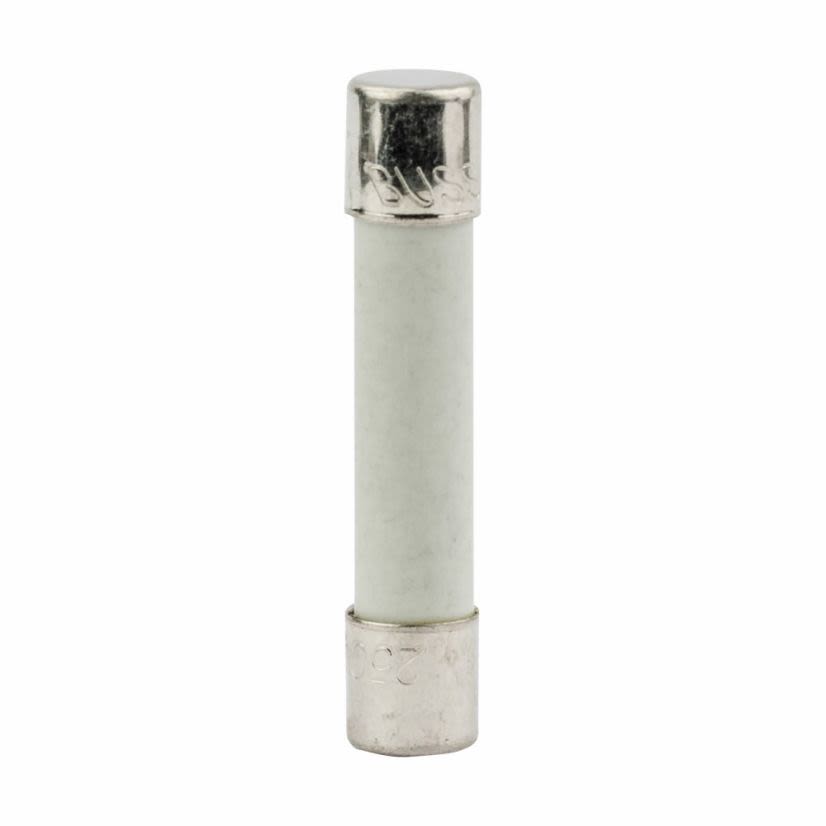

Edison GBB-3-R Very Fast Acting Fuse With Nickel Plated Brass End Caps, 3 A, 250 VAC, 125 VDC, 200 A, 10 kA Interrupt, Cylindrical Body
Bussmann Series GBB-3-R
Edison GBB-3-R Very Fast Acting Fuse With Nickel Plated Brass End Caps, 3 A, 250 VAC, 125 VDC, 200 A, 10 kA Interrupt, Cylindrical BodyNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Edison Very Fast Acting Fuse, Series: GBB, Non-Indicating, 3 A, 250 VAC, 125 VDC, 200 A, 10 kA Interrupt, 2 min, 1 s Response, Ferrule Terminal, Holder Mounting, Cylindrical Body, Single Element, Ceramic, 1/4 in Dia x 1-1/4 in L Body
Attributes
Documents
Applications
Features
Attributes
Body Size1/4 in Dia x 1-1/4 in L
Body TypeCylindrical
Country of OriginCN
ElementSingle
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating200 A, 10 kA
ManufacturerEaton
MaterialCeramic
Mounting TypeHolder
Response Time2 min, 1 s
SeriesGBB
Terminal TypeFerrule
Voltage Rating250 V AC/125 V DC
Documents
Applications
Electronic Circuits
Features
- Very fast acting performance allows protection of highly sensitive electronic circuitry
- 200 A at 250 VAC, 10 kA at 125 VAC/VDC interrupt rating
- 2 min maximum at 150%, 1 sec maximum at 250% response time
