Bussmann Series ECNR30

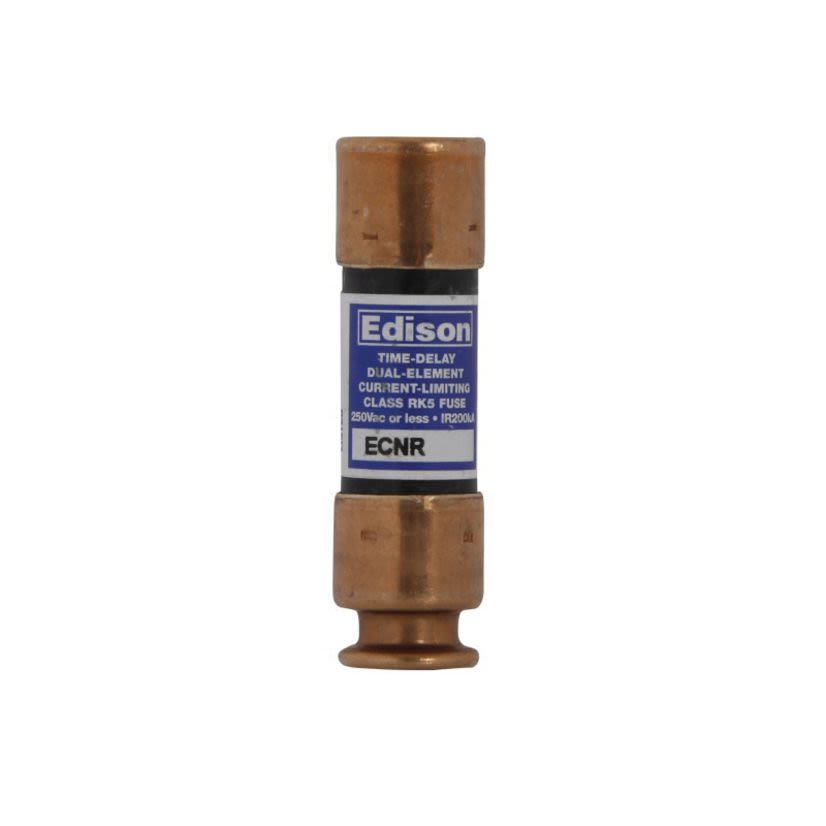

Bussmann Bullet ECNR30 Current Limiting Time Delay Fuse, 30 A, 250 V AC/125 V DC, 200 kAIC Interrupt, RK5 Class, Cylindrical Body
Bussmann Series ECNR30
Bussmann Bullet ECNR30 Current Limiting Time Delay Fuse, 30 A, 250 V AC/125 V DC, 200 kAIC Interrupt, RK5 Class, Cylindrical BodyNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Bussmann Bullet Fuse, Current Limiting Time Delay, Series: ECNR, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 30 A, 250 V AC/125 V DC, 200 kAIC Interrupt, Class: RK5, 10 s at 500% Response, Ferrule End Terminal, Cylindrical Body Type, Dual Element, Fiberglass, 0.56 in Dia x 2 in L Body Size
Attributes
Documents
Applications
Features
Attributes
Body Size0.56 in Dia x 2 in L
Body TypeCylindrical
ClassRK5
Country of OriginMX
ElementDual
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating200 kAIC
ManufacturerEaton
MaterialFiberglass
Mounting TypeHolder
Rejection/Non-RejectionRejection
Response Time10 s at 500%
SeriesECNR
Terminal TypeFerrule End
Type / StyleCurrent Limiting
Voltage Rating250 V AC/125 V DC
Documents
Applications
Industrial Facilities and Factories, Safety and Security Systems, AC Power Distribution System Mains, Feeders, Branch Circuits, Motor, Motor Branch Circuits, Lighting, Heating, Transformers and Inductive Loads Applications
Features
- Provides motor overload, ground fault and short circuit protection
- Helps protect motors against burnout from overloads
- Helps protect motors against burnout from 1 ph on 3 ph systems
- Simplifies and improves blackout prevention (selective co-ordination ratios)
- Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
- The overload element provides protection against low level overcurrent of overloads and will hold an overload which is 5X greater than the amperage rating of the fuse for a minimum of 10 s
- Superior overload and cycling capabilities
