Bussmann Series 5.5ABWNA1E

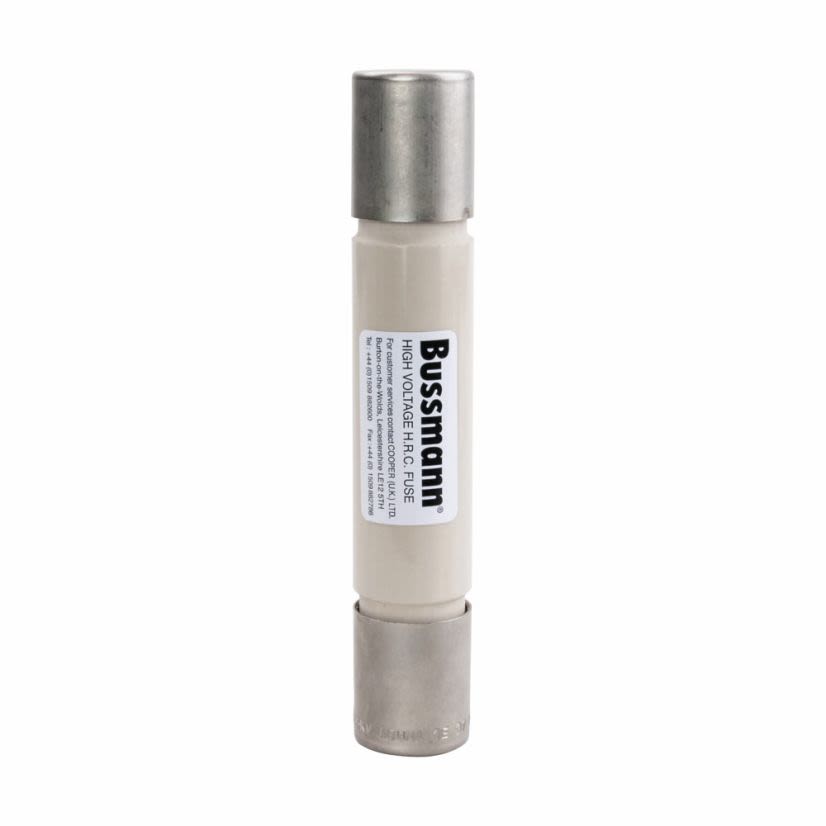

Edison 5.5ABWNA1E AB Series Single Barrel Medium Voltage Fuse, 1E A, 5.5 kV, 50 kA Interrupt, Class: E, Cartridge Body
Bussmann Series 5.5ABWNA1E
Edison 5.5ABWNA1E AB Series Single Barrel Medium Voltage Fuse, 1E A, 5.5 kV, 50 kA Interrupt, Class: E, Cartridge BodyNon-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #5.5ABWNA1E
Werner Part #3812757
UPC051712835862
Non-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #5.5ABWNA1E
Werner Part #3812757
UPC051712835862
Product Description
Edison Medium Voltage Fuse, Single Barrel, Series: AB Series, Non-Indicating, 1E A, 5.5 kV, 50 kA Interrupt, Class: E, Ferrule Terminal, Bolted-On Mounting, Cartridge Body, 1 in Dia x 5.6 in L Body
Attributes
Documents
Applications
Features
Attributes
Body Size1 in Dia x 5.6 in L
Body TypeCartridge
ClassE
Country of OriginIN
Indicating/Non-IndicatingNon-Indicating
Interrupt Rating50 kA
ManufacturerEaton
Mounting TypeBolted-On
SeriesAB Series
Terminal TypeFerrule
Type / StyleSingle Barrel
Voltage Rating5.5 kV
Documents
Applications
For primary protection of medium voltage potential transformers and small medium voltage service/control transformers
Features
- Low amp, current limiting e-rated PT medium voltage fuses are general purpose fuses defined by their melting time current characteristic that permit their electrical interchangeability with other fuses of the same E-rating
- E-rated general purpose fuses must have a current responsive element that will melt in 300 sec at an rms current within the range of 200% to 240% of the fuses nameplate current rating, fuse refill or link per ANSI C37.46 for fuses rated 100E or less
- PT fuses are physically dimensioned for easy installation in existing hardware
- Current limiting fuses provide positive interruption even on low fault currents
- The fuse limits the magnitude of electromechanical stresses in the protected apparatus
- These fuses are in a self-contained, non-venting package for installation indoors or outdoors in an enclosure
