Bussmann Series 16371-3

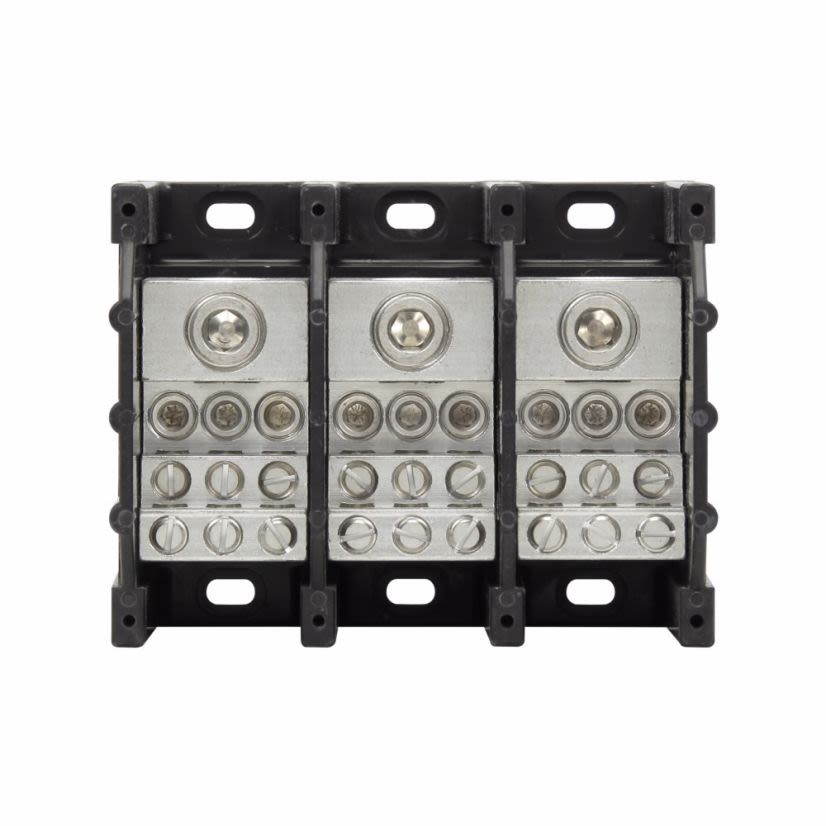

Edison Magnum 16371-3 Barrier Power Terminal Block, 600 V AC/DC, 310 A, 3 Poles, 6 AWG to 350 kcmil Wire, Thermoplastic
Bussmann Series 16371-3
Edison Magnum 16371-3 Barrier Power Terminal Block, 600 V AC/DC, 310 A, 3 Poles, 6 AWG to 350 kcmil Wire, ThermoplasticNon-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #16371-3
Werner Part #21354
UPC051712271394
Non-stock product. Available to order - lead time may vary.
BrandBussmann Series
MFG #16371-3
Werner Part #21354
UPC051712271394
Product Description
Edison Magnum Power Terminal Block, Barrier, Series: 163, 600 V AC/DC, 310 A, 3 Pole, 1 Primary Connections/Pole, 9 Secondary Connection/Pole, 6 AWG to 350 kcmil Wire, 100 kA Short Circuit, Thermoplastic, Tin Plated, Black, 5.21 in L x 4 in W x 3.32 in H Dimensions
Attributes
Documents
Applications
Features
Attributes
Actuator TypePadlock-Off Handle
ColorBlack
Country of OriginMX
Dimensions5.21 in L x 4 in W x 3.32 in H
Enclosure TypeNEMA 1/12
FinishTin Plated
Horsepower10 hp, 15 hp, 30 hp, 50 hp
ManufacturerEaton
MaterialThermoplastic
Mounting TypeFlange/Right Hand
Number of Poles3
Package TypeEACH
Phase3
Primary Connection/Pole1
Secondary Connection/Pole9
Series163
Short Circuit Current Rating100 kA
Size of Wire6 AWG to 350 kcmil
Terminal TypeLine/Lug
TypeBarrier
Type / StyleBarrier
Voltage600 VAC/VDC
Documents
Applications
Power Distribution Applications
Features
- Rated for dual wire port application to increase the possible number of lineside and loadside connections
- Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
- Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
- Molded thermoplastic base, tin plated aluminum connector
- SMD/SMT style mounting
- 6 AWG to 350 kcmil copper/aluminum line, (6) 14 to 2 AWG copper/8 to 2 AWG aluminum, (3) 14 to 1/0 AWG copper/8 to 1/0 AWG aluminum load wire
- (9) 1/4 in quick connect
- (1) screw primary, (9) quick connect secondary
