Bussmann Series 16000-4

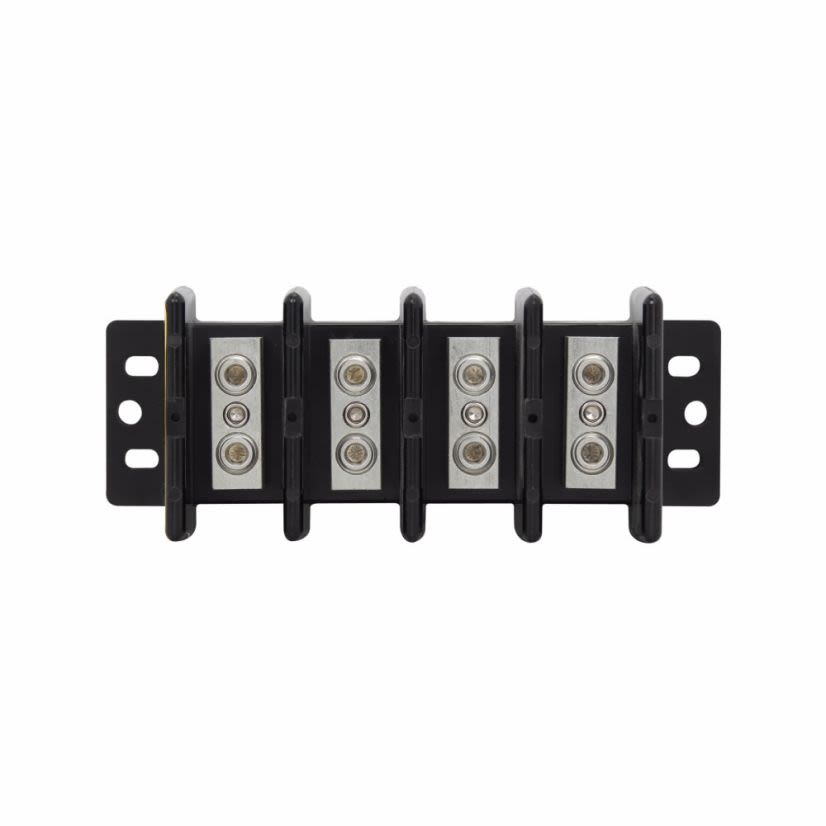

Edison 16000-4 Splicer Power Terminal Block, 600 V AC/DC, 175 A, 4 Poles, 8 to 2/0 AWG Wire, Thermoplastic
Bussmann Series 16000-4
Edison 16000-4 Splicer Power Terminal Block, 600 V AC/DC, 175 A, 4 Poles, 8 to 2/0 AWG Wire, ThermoplasticNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Edison Power Terminal Block, Splicer, Series: 160, 600 V AC/DC, 175 A, 4 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 8 to 2/0 AWG Wire, 10 kA Short Circuit, Thermoplastic, Tin Plated, Black, 6.62 in L x 2.8 in W x 2.12 in H Dimensions
Attributes
Documents
Applications
Features
Attributes
ColorBlack
Country of OriginMX
Dimensions6.62 in L x 2.8 in W x 2.12 in H
FinishTin Plated
ManufacturerEaton
MaterialThermoplastic
Number of Poles4
Primary Connection/Pole1
Secondary Connection/Pole1
Series160
Short Circuit Current Rating10 kA
Size of Wire8 to 2/0 AWG
Suitable For Use WithNon-Fused Disconnect Switch
TypeSplicer
Type / StyleSplicer
Voltage600 VAC/VDC
Documents
Applications
Power Distribution Applications
Features
- Rated for dual wire port application to increase the possible number of lineside and loadside connections
- Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port
- Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port
- Molded thermoplastic base, tin plated aluminum connector
- SMD/SMT style mounting
- 8 to 2/0 AWG copper/aluminum line/load wire
- (1) screw primary, (1) screw secondary
