Metalux 22EN-LD2-34-UNV-L840-CD1-U

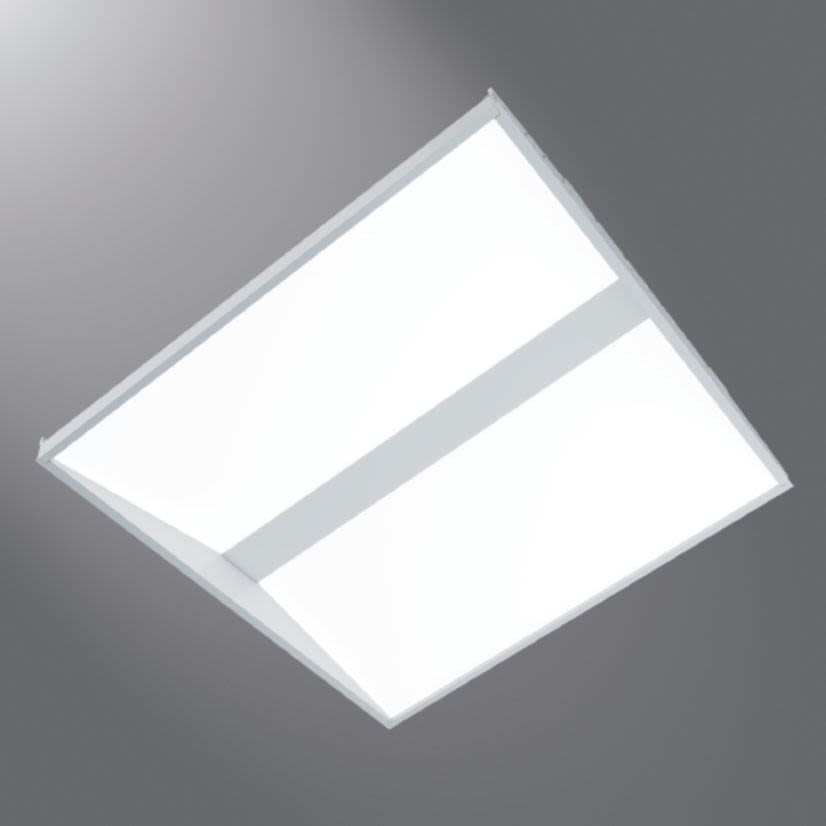

Metalux Specification Encounter 22EN-LD2-34-UNV-L840-CD1-U Troffer, (1) Lamp, 120 to 277 V AC, Aluminum Housing
Metalux 22EN-LD2-34-UNV-L840-CD1-U
Metalux Specification Encounter 22EN-LD2-34-UNV-L840-CD1-U Troffer, (1) Lamp, 120 to 277 V AC, Aluminum HousingNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Metalux Specification Encounter Troffer, Series: 22EN, 120 to 277 V AC, 0.103 A, 29 W Lamp, 1 Lamps, Static Recessed Trim, 4000 K Color Temperature, Acrylic Lens, 3400 Lumens, Ceiling/Recessed Mounting, Aluminum Housing Material, 25-1/2 in L x 24-1/8 in W x 4-7/8 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
Color Temperature4000 K
Country of OriginMX
Dimensions25-1/2 in L x 24-1/8 in W x 4-7/8 in H
Housing FinishBrushed Nickel Plated
Housing MaterialAluminum
Lamp Base TypeMedium
Lamp TypeA19 Incandescent
Lamp Wattage29 W
Lens TypeAcrylic
Lumen3400 Lumens
ManufacturerCooper Lighting Solutions
Mounting TypeFlush
Number of Lamps1
Series22EN
TypeUtilitarian
Voltage Rating120 to 277 V AC
Documents
Applications
For lighting applications
Features
- 3 Lumens output levels that are comparable to 26 and 32 W CFL
- 4 CCT color choices offer the user a variety of both warm and cool environmental settings
- Standard 90+ CRI COB for natural color rendering with the space
- Standard 5% dimming with 0 to 10 VDC and 120 Triac dimming
- Rapid installation of trim with driver quick connect system and standard retention springs
- 0.1 A at 120 VAC, 0.04 A at 277 VAC amperage rating
- Installation uses Pro-Nail bar hangers with integral nail compatible with joist systems and materials
Specifications
Recessed Trim Type: Static
