JUNO USTLR1-3K-WH

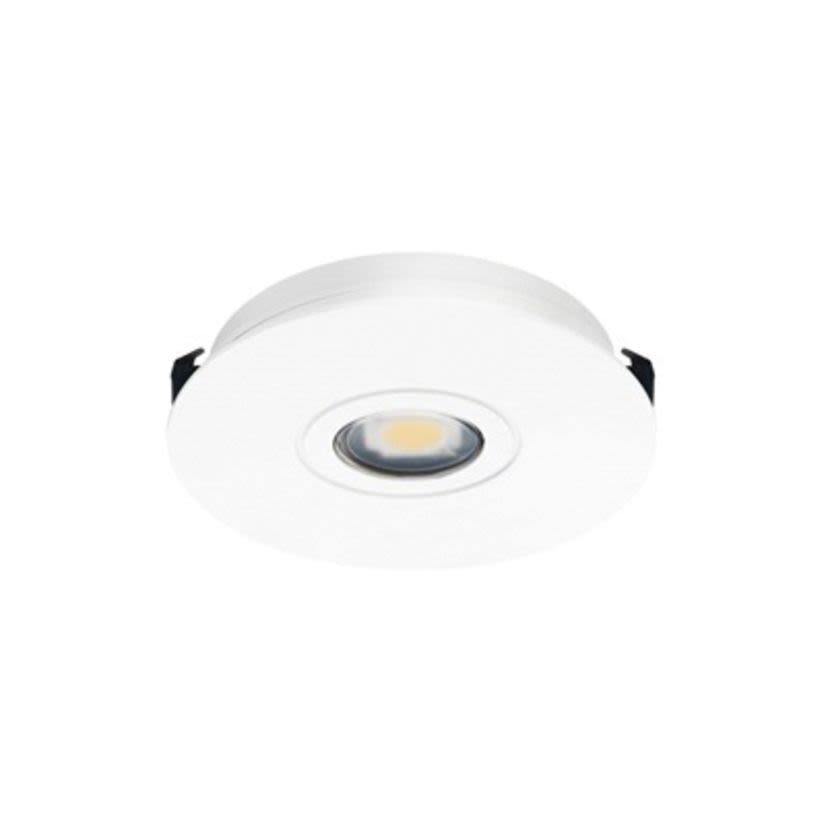

Acuity Brands JUNO® USTLR1-3K-WH Solo-Task Under Cabinet Light, LED Lamp, 3.8 W Fixture, 120 VAC, White Housing
JUNO USTLR1-3K-WH
Acuity Brands JUNO® USTLR1-3K-WH Solo-Task Under Cabinet Light, LED Lamp, 3.8 W Fixture, 120 VAC, White HousingNon-stock product. Available to order - lead time may vary.
BrandJUNO
MFG #USTLR1-3K-WH
Werner Part #4197577
UPC661209356345
Non-stock product. Available to order - lead time may vary.
BrandJUNO
MFG #USTLR1-3K-WH
Werner Part #4197577
UPC661209356345
Product Description
Juno® Under Cabinet Light, Solo-Task, 120 VAC, 3.8 W Fixture, 0.37 A, LED Lamp, 3.5 W Lamp, 50000 hr Average Life, 3000 K Color Temperature, 80 CRI, High Transmission Diffuser Lens, 286 Lumens, Recessed Mounting, Die Cast Aluminum Housing Material, White Housing Finish, 2-29/32 in Dia x 9/16 in L Dimensions
Attributes
Documents
Features
Attributes
Average Life50000 hr
ColorWhite
Color Rendering Index (CRI)80
Color Temperature3000 K
Country of OriginUnited States
Fixture Wattage3.8 W
Inside Diameter4 in
Lamp TypeMR16 Incandescent
Lamp Wattage3.5 W
Lens TypeHigh Transmission Diffuser
Lumen286 Lumens
ManufacturerAcuity Brands
MaterialAluminum
Mounting TypeCeiling
Outside Diameter5-1/16 in
Series1496
Suitable For Use WithH1499 Housing
Type60 deg Tilt 360 deg Rotation Circle Low Voltage
Type / StyleSolo-Task
Features
3000K white phosphor array provides outstanding performance, color quality/consistency and reliabilityDaisy-chain capable utilizing screw-type terminal blocksAccepts 14 to 18 AWG wireRated at 50000 hr at 70% lumen maintenanceHigh transmission diffusing lens produces smooth, uniform aperture luminanceOnboard luminaire LED driver operates at less than 5 W input at 12 VACRequires Class 2, 120 V to 12 VAC electronic or magnetic driver/transformer for operationJuno's TL602E and TL548U electronic drivers/transformers, and TL576 magnetic driver/transformer are designed specifically for use with these luminairesMay be dimmed with dimmers tested and qualified by Juno for use with TL602E and TL576Color temperature remains constant over dimming range74.5 lumens per watt efficiency
