Sta-Kon RC363

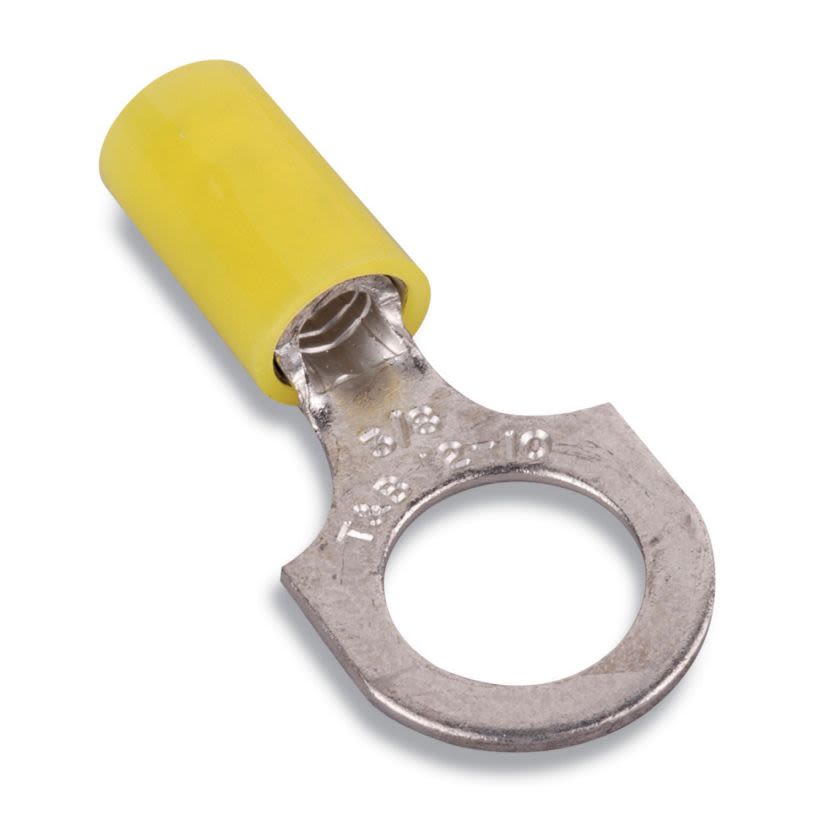

Sta-Kon RC363 RC Series Insulated Ring Terminal, 12 to 10 AWG Conductor, 1 in L, Insulation Grip Sleeve Barrel, Copper, Yellow
Sta-Kon RC363
Sta-Kon RC363 RC Series Insulated Ring Terminal, 12 to 10 AWG Conductor, 1 in L, Insulation Grip Sleeve Barrel, Copper, YellowNon-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #RC363
Werner Part #65088
UPC786210819822
Non-stock product. Available to order - lead time may vary.
BrandSta-Kon
MFG #RC363
Werner Part #65088
UPC786210819822
Product Description
Sta-Kon Ring Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, #10 Stud, 1 in Length, Insulation Grip Sleeve Barrel, Ring Tongue, 0.37 in W x 0.04 in THK Tongue, 600 V AC, 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Nylon Insulation, 105 deg C, Copper, Tin Coated, Yellow
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel TypeInsulation Grip Sleeve
ColorYellow
Conductor size12 to 10 AWG
Country of OriginUS
FinishTin Coated
ManufacturerABB
MaterialCopper
SeriesRC Series
Stud Size#10
Temperature Rating105 deg C
Tongue Size0.37 in W x 0.04 in THK
Tongue TypeRing
TypeInsulated
Type / StyleInsulated
Voltage Rating600 V AC
Applications
For WT2000, WT112M, WT145C, ERG4001, ERG4003 and WT145A tools
Features
- Self-insulated with high dielectric strength nylon sleeves
- An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
- Made of copper and has electro-tin plating for high conductivity/corrosion resistance
- 500 pieces/pack
Specifications
0.21 in Dia Maximum Insulation, 0.27 in Clearance, Nylon Insulation
