Southwire 68709501

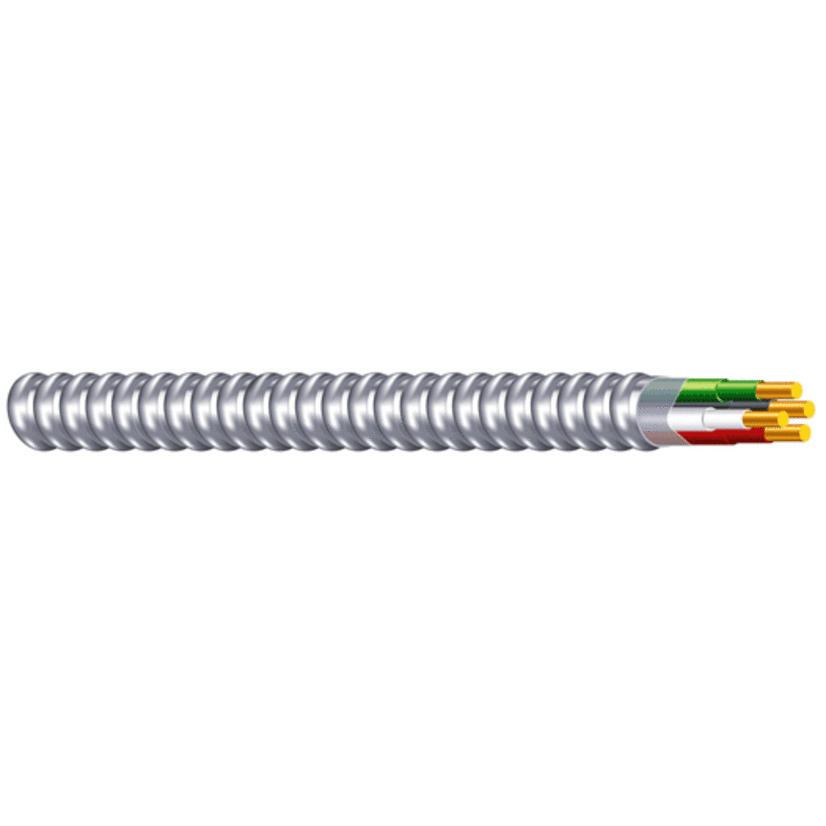

Southwire® Armorlite® 68709501 Type MC Lightweight Armor Cable, 600 VAC, (2) 8 AWG Stranded Copper Conductor, 200 ft L
Southwire 68709501
Southwire® Armorlite® 68709501 Type MC Lightweight Armor Cable, 600 VAC, (2) 8 AWG Stranded Copper Conductor, 200 ft LIn Stock: 2000more info
|
BrandSouthwire
MFG #68709501
Werner Part #3912630
UPC032886346170
In Stock: 2000more info
|
BrandSouthwire
MFG #68709501
Werner Part #3912630
UPC032886346170
Product Description
Southwire® Armorlite® Armor Cable, Type MC Lightweight, 600 VAC, 55 A, 2 Conductors, Stranded Copper Conductor, 8 AWG Conductor, 0.644 in Outside Dia, 200 ft Length, 19 Strands, Aluminum, Black/Green/White, 90 deg C
Attributes
Documents
Features
Specifications
Attributes
BABA CompliantYes
Conductor size8AWG
Conductor TypeStranded Copper
Country of OriginUnited States
Jacket ColorBlack/Green/White
Jacket MaterialAluminum
ManufacturerSouthwire Company
Number of Conductors2
Outside Diameter0.644in
Packaging TypeReel
Strands19
Temperature Rating90deg C
TypeType MC Lightweight
Voltage Rating600 V
Documents
Features
Green 10 AWG stranded grounding sizeBlack/white conductor colorReduces installation costs up to 50% over pipe and wireLightweight aluminum armor as much as 45% lighter than steel mc cableBetter grounding performance than type ACCable reverse wound on reel for ease of pulling and installation, when pulling from coils, pull from inside to ensure ease of installationAnti-short bushings are not required for use with mc cable per the NEC and ULEnvironmental air-handling spaces per NEC 300.22(C)Places of assembly per NEC 518.4 and theaters per NEC 520.5Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) and 645.5(D)(2)Class I Div. 2, class Ii div 2 and class III Div. 1 hazardous locationsFished or embedded in plaster, concealed or exposed installations, installation in cable tray and approved racewaysTHHN/THWN conductors rated 90 deg C dry available in sizes 14 AWG through 2 AWG and a green insulated grounding conductorConductors are cabled together and a binder tape bearing the print legend is wrapped around the assemblyAluminum interlocking armor is applied over the assembly
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 83/1569/1685|Federal Specification A-A59544|FT4/IEEE 1202 (70,000 Btu/hr) Vertical Cable Tray Flame Test|NFPA 70|NEC Article 330|UL 1, 2 and 3 Hour Through Penetration Firestop Systems
