Southwire 58610101

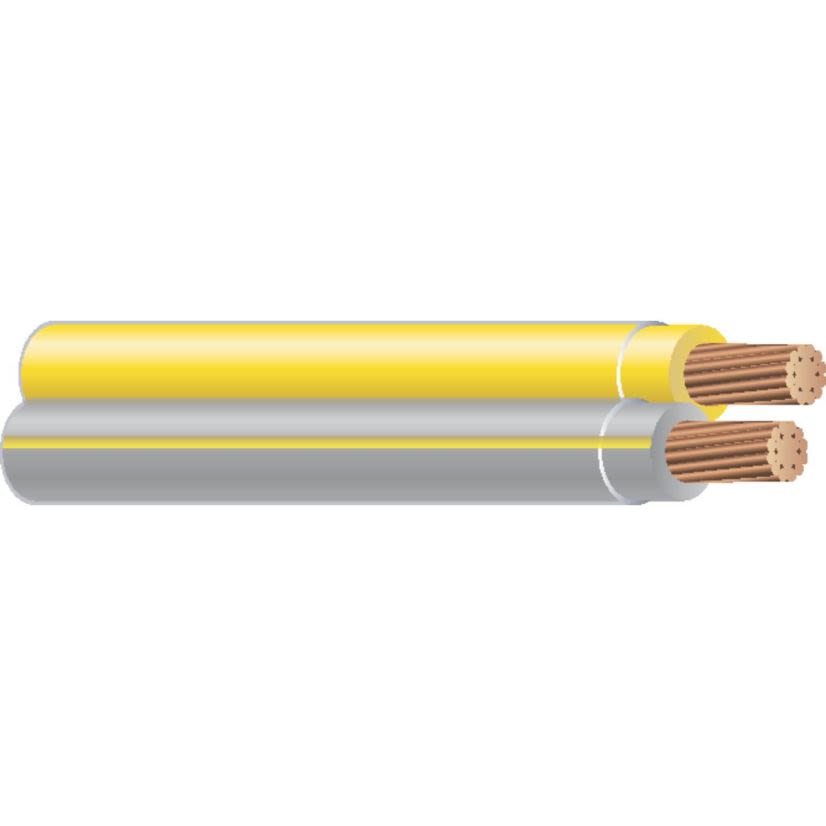

Southwire SIMpull 58610101 THHN Parallel Building Wire, 600 V AC, (2) 12 AWG Stranded Copper Conductor, 1000 ft L, Gray/Yellow
Southwire 58610101
Southwire SIMpull 58610101 THHN Parallel Building Wire, 600 V AC, (2) 12 AWG Stranded Copper Conductor, 1000 ft L, Gray/YellowIn Stock: 19000more info
|
In Stock: 19000more info
|
Product Description
Southwire SIMpull Building Wire, THHN Parallel, 600 V AC, 20 A, 2 Conductors, Stranded Copper Conductor, 12 AWG Conductor, 128 mil OD, 1000 ft Length, 19 Strands, PVC Insulation, Nylon Jacket, Gray/Yellow Jacket, 90 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
BABA CompliantYes
Conductor size12 AWG
Conductor TypeStranded Copper
Country of OriginUS
Insulation MaterialPVC
Jacket ColorGray/Yellow
Jacket MaterialNylon
ManufacturerSouthwire Company
Number of Conductors2
Outside Diameter128 mil
ResistanceHeat, Moisture, Gasoline and Oil
Strands19
Temperature Rating90 deg C
TypeTHHN Parallel
Voltage Rating600 V AC
Applications
Commercial Applications
Warranty
1 Year
Features
- THWN- Wet locations not to exceed 75 C or dry locations not to exceed 90 C or locations not to exceed 75 C when exposed to oil
- Stationary package design reduces pulling effort
- payoffs with striped neutrals for greater efficiency and less handling
- SIMpull NoLube jacket further reduces pulling tension
- Designed to help reduce potential lifting/handling/pulling injuries
- Space saving, multi-wire Coil PAKTM
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ASTM Specified|UL 83, 1581, 1063 (MTW)|CSA Certified|NOM-ANCE 90(D)C|Federal Specification A-A-59544, NEC NFPA 70
