Werner MCAL Cable

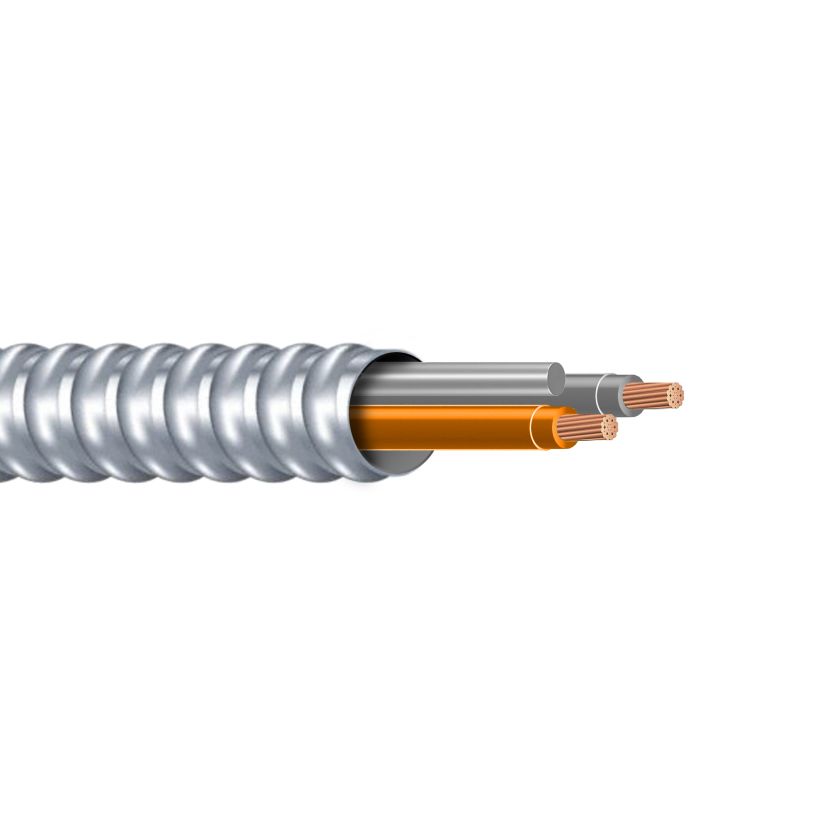

MCAL Cable - Stranded, Orange/Gray, 12/2, 1000 Feet Spooled
Werner MCAL Cable
MCAL Cable - Stranded, Orange/Gray, 12/2, 1000 Feet SpooledOut of Stockmore info
|
BrandWerner
MFG #MCAL Cable
Werner Part #3941317
UPC032886043468
Out of Stockmore info
|
BrandWerner
MFG #MCAL Cable
Werner Part #3941317
UPC032886043468
Product Description
Copper THHN/THWN Insulated Singles. Green Insulated Copper Grounding Conductor. UL Listed. 600 Volts Rated VW-1. Lightweight Aluminum Interlocked Armor. Branch and service power distribution in commercial, industrial, institutional, and multi-residential buildings. Class I Div. 2, Class II Div 2, & Class III Div. 1 Hazardous Locations.Type THHN/THWN is rated 90ºC Dry.
Documents
Features
Specifications
Features
- UL 83
- UL 1569
- UL 1685
- UL Online Product Guide Info - Metal-Clad Cable (PJAZ) ( www.ul.com )
- Federal Specification A-A59544 (formerly J-C-30B)
- FT4/IEEE 1202 (70,000 Btu/hr) Vertical Cable Tray Flame Test
- NFPA 70 (National Electrical Code), Article 330
- Listed for use in UL 1, 2 and 3 Hour Through Penetration Firestop Systems
- REACH/RoHS-2 (Chemical Limit) Compliant
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 83/1569/1685|Federal Specification A-A59544|FT4/IEEE 1202 (70,000 Btu/hr) Vertical Cable Tray Flame Test, NEC, Listed for use in UL 1, 2 and 3 Hour Through Penetration Firestop Systems, Compliant
