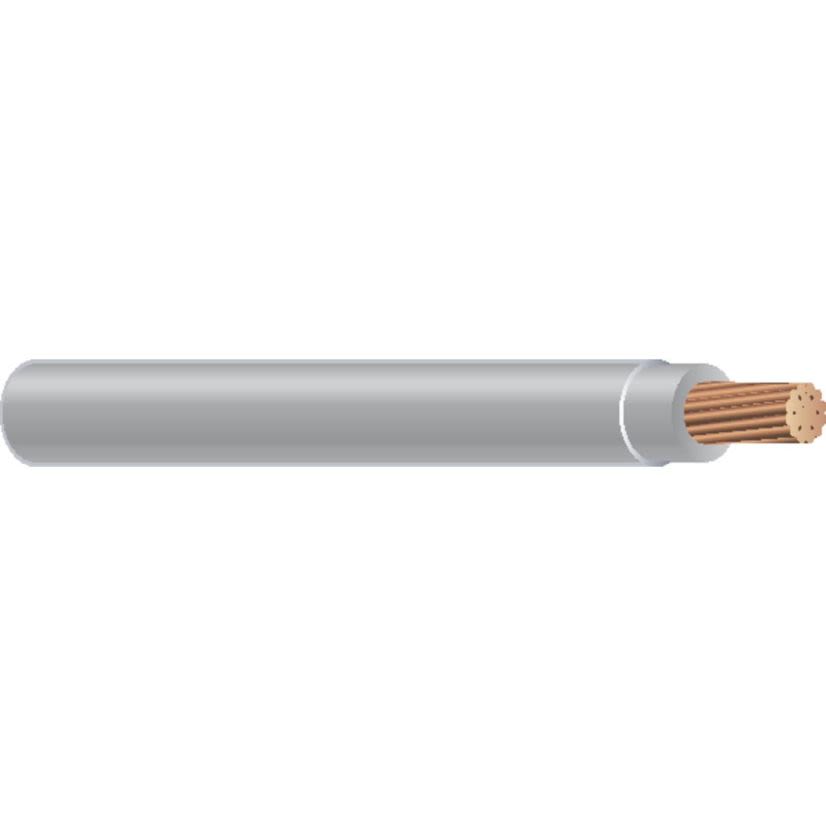

Werner TFFN Copper Building Wire
TFFN Cable - Stranded, Gray, 16 AWG, 2500ft Spooled
Werner TFFN Copper Building Wire
TFFN Cable - Stranded, Gray, 16 AWG, 2500ft SpooledIn Stock: 7500more info
|
BrandWerner
MFG #TFFN Copper Building Wire
Werner Part #2296873
UPC032886227622
In Stock: 7500more info
|
BrandWerner
MFG #TFFN Copper Building Wire
Werner Part #2296873
UPC032886227622
Product Description
Type TFFN or MTW or AWM may be used as fixture wire, machine tool wiring, or appliance wiring material as specified in the National Electrical Code. Voltage for all applications is 600 volts. This is a Stranded Gray 16 AWG wire and is packaged in a 2500 foot spool.
Documents
Features
Specifications
Features
- TFFN- Dry locations not to exceed 90°C
- MTW- Wet locations or when exposed to oil or coolant at temperatures not to exceed 60°C
- MTW- Dry locations at Temperatures not to exceed 90°C (with ampacity limited to that for 75°C conductor temperature per NFPA 79)
- AWM- When rated as appliance wiring material in dry locations, conductor temperatures not to exceed 105°C
- TEWN- Wet or dry locations conductor temperatures not to exceed 105°C
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ASTM Standard|NFPA 70|UL 66/758/1063
