SolaHD E350

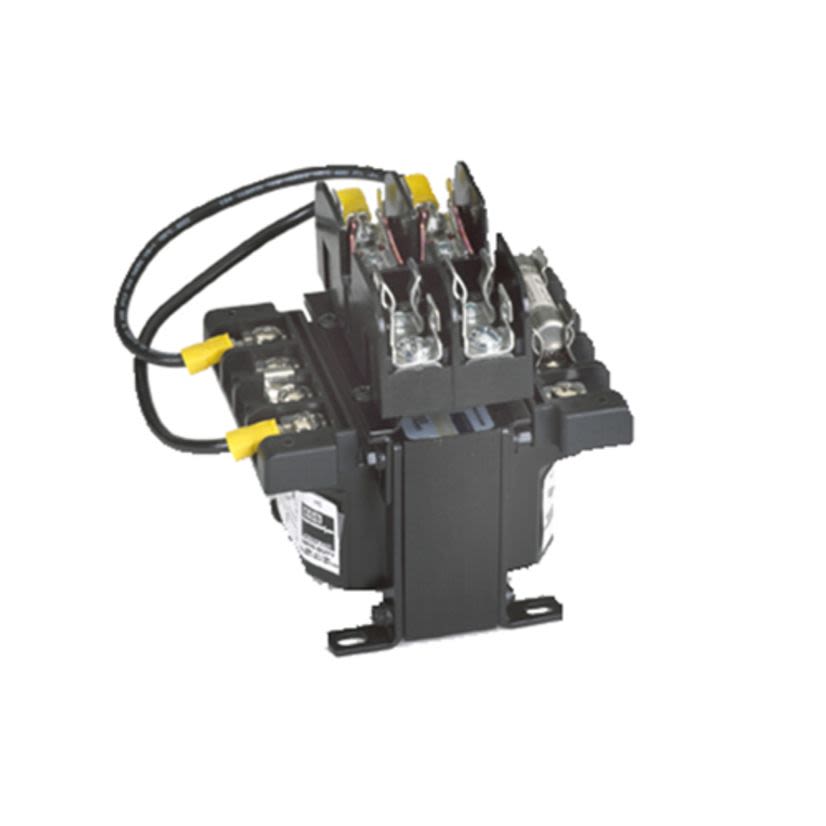

Emerson Electric SolaHD E350 SBE Encapsulated Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 0.35 kVA Power Rating, 50/60 Hz, 1 Phase
SolaHD E350
Emerson Electric SolaHD E350 SBE Encapsulated Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 0.35 kVA Power Rating, 50/60 Hz, 1 PhaseIn Stock: 2more info
|
In Stock: 2more info
|
Product Description
Emerson Electric SolaHD Control Transformer, Encapsulated, Series: SBE, 240/480 VAC Primary, 120 VAC Secondary, 0.35 kVA Power, 50/60 Hz Frequency, 1 ph, Lead Wire Connection, Surface Mounting, 105 deg C Insulation, IP20 Enclosure, 131 deg F, 4.66 in L x 5.25 in W x 4.53 in H Dimensions
Attributes
Documents
Features
Attributes
Connection TypeWire Lead
Country of OriginVietnam
Dimensions4.66 in L x 5.25 in W x 4.53 in H
Enclosure TypeIP20
Frequency Rating50/60 Hz
Insulation Type105 deg C
ManufacturerEmerson Electric
Mounting TypeSurface
Phase1
Power Rating0.35 kVA
Primary Voltage240/480 VAC
Secondary Voltage120 VAC
SeriesSBE
Temperature Rating131 deg F
TypeEncapsulated
Type / StyleEncapsulated
Documents
Features
Interleaved copper windings reduce I2R losses and maximize efficiencyEpoxy encapsulated to protect cores and coils against moisture, dirt and other contaminantsMeets or exceeds NEMA standard ST 1 and ANSI C89.1 for load inrush capabilityIntegrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivityHeavy gauge steel mounting plateMounting dimensions are compatible with similar control transformers131 deg F rise, 105 deg C insulation system to minimize heatSecondary fuse holders (FB2X) included for 13/32 x 1-1/2 in cartridges
