SolaHD E250WA

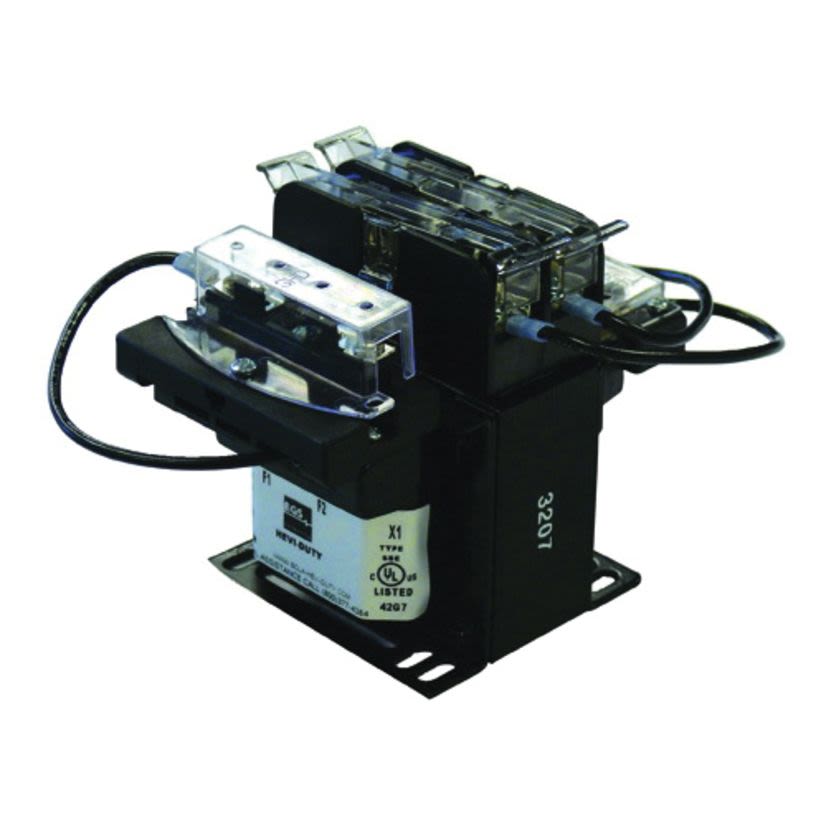

Emerson Electric SolaHD E250WA SBE Type 3AG Encapsulated Control Transformer With Finger Safe Cover, 240/480 VAC Primary, 120 VAC Secondary, 0.25 kVA Power Rating, 50/60 Hz, 1 Phase
SolaHD E250WA
Emerson Electric SolaHD E250WA SBE Type 3AG Encapsulated Control Transformer With Finger Safe Cover, 240/480 VAC Primary, 120 VAC Secondary, 0.25 kVA Power Rating, 50/60 Hz, 1 PhaseNon-stock product. Available to order - lead time may vary.
BrandSolaHD
MFG #E250WA
Werner Part #1326538
UPC783472002276
Non-stock product. Available to order - lead time may vary.
BrandSolaHD
MFG #E250WA
Werner Part #1326538
UPC783472002276
Product Description
Emerson Electric SolaHD Control Transformer, Type 3AG Encapsulated, Series: SBE, 240/480 VAC Primary, 120 VAC Secondary, 0.25 kVA Power, 50/60 Hz Frequency, 1 ph, Lead Wire Connection, Surface Mounting, 105 deg C Insulation, IP20 Enclosure, 131 deg F, 4.79 in L x 4.5 in W x 5.36 in H Dimensions
Attributes
Documents
Features
Attributes
Connection TypeWire Lead
Country of OriginVietnam
Dimensions4.79 in L x 4.5 in W x 5.36 in H
Enclosure TypeIP20
Frequency Rating50/60 Hz
Insulation Type105 deg C
ManufacturerEmerson Electric
Mounting TypeSurface
Phase1
Power Rating0.25 kVA
Primary Voltage240/480 VAC
Secondary Voltage120 VAC
SeriesSBE
Temperature Rating131 deg F
TypeType 3AG Encapsulated
Type / StyleType 3AG Encapsulated
Documents
Features
Interleaved copper windings reduce I2R losses and maximize efficiencyEpoxy encapsulated to protect cores and coils against moisture, dirt and other contaminantsMeets or exceeds NEMA standard ST 1 and ANSI C89.1 for load inrush capabilityIntegrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivityHeavy gauge steel mounting plateMounting dimensions are compatible with similar control transformers131 deg F rise, 105 deg C insulation system to minimize heatFactory installed primary fuse holder class CC and secondary fuse holder glass or ceramic (type 3AG, 1/4 in x 1-1/4 in fuse type)
