Southwire 167022R108

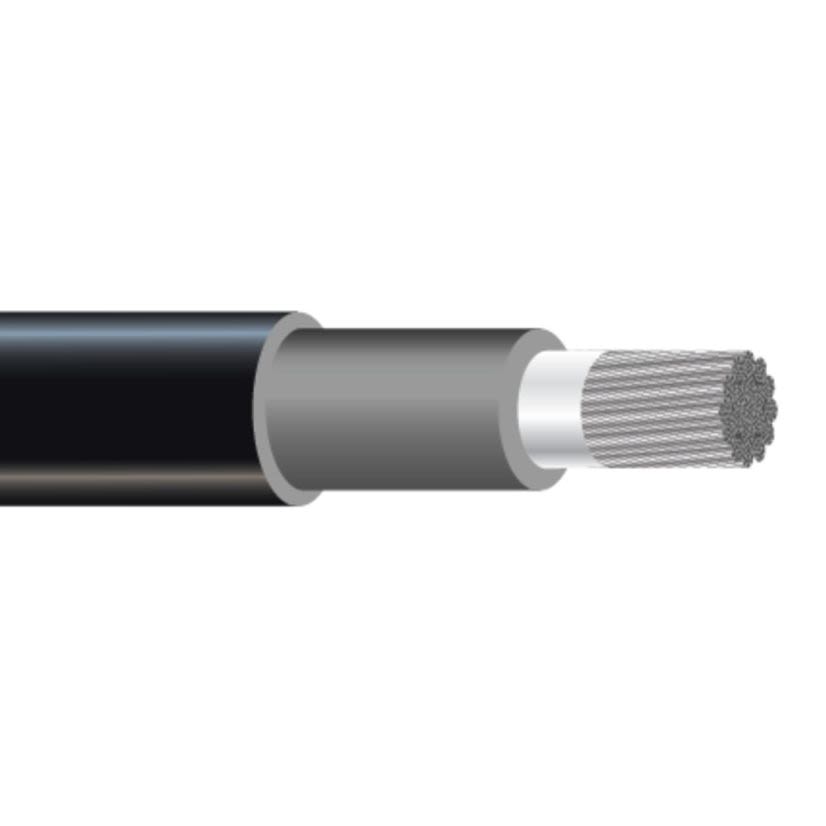

Southwire 167022R108 Heavy Duty Flexible Power Cable, 2 kV, 2/0 AWG Conductor Tinned Copper Conductor
Southwire 167022R108
Southwire 167022R108 Heavy Duty Flexible Power Cable, 2 kV, 2/0 AWG Conductor Tinned Copper ConductorIn Stock: 335more info
|
BrandSouthwire
MFG #167022R108
Werner Part #3961842
UPC029892661472
In Stock: 335more info
|
BrandSouthwire
MFG #167022R108
Werner Part #3961842
UPC029892661472
Product Description
Southwire, 167022R108, Flexible Power Cable, Heavy Duty, 2 kV, 195 A, Tinned Copper Conductor, 2/0 AWG Conductor, 690 mil OD, 342 Strands, 0.0834 Ohm Resistance, EPDM/CPE Insulation, Black Jacket, 90 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
BABA CompliantYes
Conductor size2/0 AWG
Conductor TypeTinned Copper
Country of OriginUS
Insulation MaterialEPDM/CPE
Jacket ColorBlack
Jacket MaterialEPDM/CPE
ManufacturerSouthwire Company
Number of Conductors1
Outside Diameter690 mil
Packaging TypeReel
Resistance0.0834 Ohm
Strands342
Temperature Rating90 deg C
TypeHeavy Duty
Voltage Rating2 kV
Applications
For Wet and Dry Areas, Conduits, Ducts, Troughs, Trays where Superior Electrical Properties are Desired
Warranty
1 year Limited Lifetime
Features
- Flexible stranded rope-lay Class i tinned copper per ASTM B33 and B172 binder conductor
- Mylar tape
- 2 layer thermoset ethylene propylene diene monomer/ thermoset chlorinated polyethylene insulation
- 195 allowable ampacity at 90C
- 175 allowable ampacity at 75C
Specifications
- ASTM B3 Standard
- ASTM B33 Standard
- ASTM B172 Standard
- UL 44
- UL 1685
- UL 2806
- CSA C22.2 No. 38Type RW90
- ICEA S-95-658 (NEMA WC70)
- IEEE 12020 FT4
- MSHA Approved
