ProSoft Technology PLX32-EIP-MBTCP

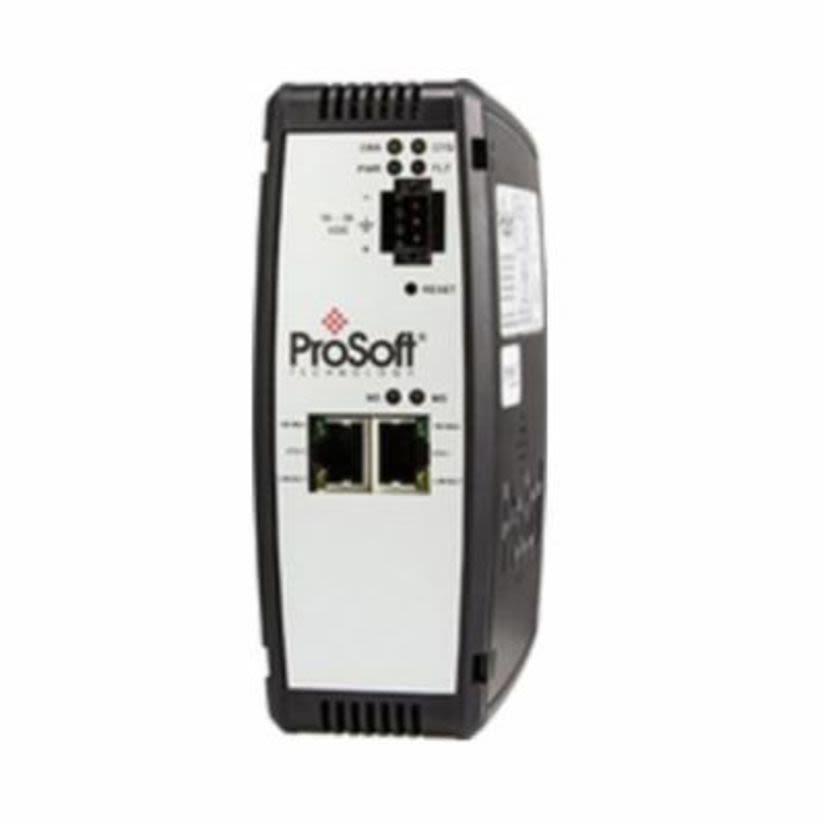

ProSoft Technology PLX32-EIP-MBTCP EtherNet/IP To Modbus TCP/IP Communications Gateway, Modbus® TCP/IP Protocol
ProSoft Technology PLX32-EIP-MBTCP
ProSoft Technology PLX32-EIP-MBTCP EtherNet/IP To Modbus TCP/IP Communications Gateway, Modbus® TCP/IP ProtocolNon-stock product. Available to order - lead time may vary.
BrandProSoft Technology
MFG #PLX32-EIP-MBTCP
Werner Part #4070023
Non-stock product. Available to order - lead time may vary.
BrandProSoft Technology
MFG #PLX32-EIP-MBTCP
Werner Part #4070023
Product Description
ProSoft Technology EtherNet/IP To Modbus TCP/IP Communications Gateway, Modbus® TCP/IP Protocol, Serial Port, 2 Ports, 5.38 in H x 1.99 in W x 4.38 in D, Environmental Conditions: 5 to 95% Humidity
Attributes
Features
Attributes
Dimensions5.38 in H x 1.99 in W x 4.38 in D
Environmental Conditions5 to 95% Humidity
ManufacturerProsoft Technology
Number of Ports2
Port TypeSerial
Features
10 to 36 VDC allowed positive, negative, GND terminals power supply-25 to 70 deg F operating temperatureTwo separate EtherNet ports allow each protocol to reside on separate subnets, this allows you to pass data between the two subnets without changing each device's IP address to be on the same subnetMultiple I/O connections allow you to set RPIs for status and/or control data, optimizing EtherNet bandwidth data prioritizationIncludes an embedded EDS add on profile, allowing for simplified integration and reduced commissioning timeGateway includes a SD card slot (SD card optional) for storing configuration files, this can be used for disaster recovery300 mA maximum at 24 VDC, 610 mA maximum at 10 to 36 VDC power supply
