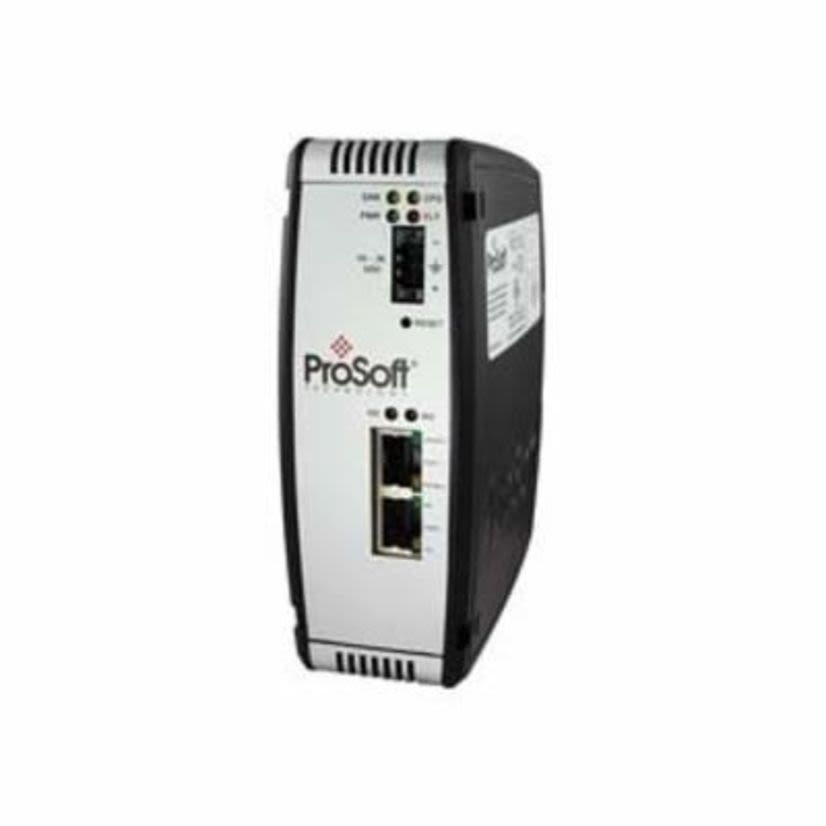

ProSoft Technology PLX31-EIP-ASCII
ProSoft Technology PLX31-EIP-ASCII Gateway, Ethernet/IP Protocol, 50/60 Hz
ProSoft Technology PLX31-EIP-ASCII
ProSoft Technology PLX31-EIP-ASCII Gateway, Ethernet/IP Protocol, 50/60 HzInventory Not Available
BrandProSoft Technology
MFG #PLX31-EIP-ASCII
Werner Part #4070754
Inventory Not Available
BrandProSoft Technology
MFG #PLX31-EIP-ASCII
Werner Part #4070754
Product Description
ProSoft Technology Gateway, Ethernet/IP Protocol, 50/60 Hz Frequency, 10Base-T Half Duplex RJ-45 Port, 2 Ports, 5.38 x 1.99 x 4.38 in, Environmental Conditions: -13 to 158 deg F Temperature, 5 to 95% Non-Condensing Relative Humidity
Attributes
Documents
Applications
Included
Features
Attributes
Country of OriginUS
Dimensions5.38 x 1.99 x 4.38 in
Environmental Conditions-13 to 158 deg F Temperature, 5 to 95% Non-Condensing Relative Humidity
Frequency Rating50/60 Hz
ManufacturerProsoft Technology
Number of Ports2
Port Type10Base-T Half Duplex RJ-45
Applications
Manufacturing, Oil/Gas, Electrical Power and Food Processing
Included
2-1/2 mm Screwdriver, PLX30 DVD, J180 Power Connector, (1 to 4) RJ45-DB9M Serial Adapter Cable (Serial Protocol), (1 to 4) DB9 to Screw Terminal Adapter (Serial Protocol) , 5 ft Gray Straight-Through Ethernet Cable
Features
- EtherNet/IP to ASCII
- 4000 word database
- Status data
- Node health
- 10/100 MB ethernet port with auto cable crossover detection
- Data analyzer for ASCII network
- 24 vdc nominal, 10 to 36 vdc allowed power supply with positive, negative, GND terminals
- 300 mA at 24 vdc nominal and 610 mA at 10 to 36 vdc maximum current load
- 15 G at 11 ms, 3-Axis (operational) and 30 G at 18 ms, 3-Axis (non-operational) shock rated
- 5G at 10 to 150 Hz vibration rated
- Configuration (CFG) and error (ERR) communication, power (PWR) and hardware fault (FLT), network status (NS) EtherNet/IP class I/Class III connection, module status (MS) nodule configuration status, ethernet communication port link/activity and 100 mbit and serial communication port receive (RX)/transmit (TX) LED indicators
- 10/100 Base-T half-duplex RJ45 connector ethernet port
- 1500 Vrms at 50/60 Hz for 60 sec
- 2500 Vrms port signal isolation per UL 1577 serial port communication signal uses RF modulation signal as isolation media - serial port isolation
- -40 to 176 deg F storage temperature
