Panduit UTP28X7GR

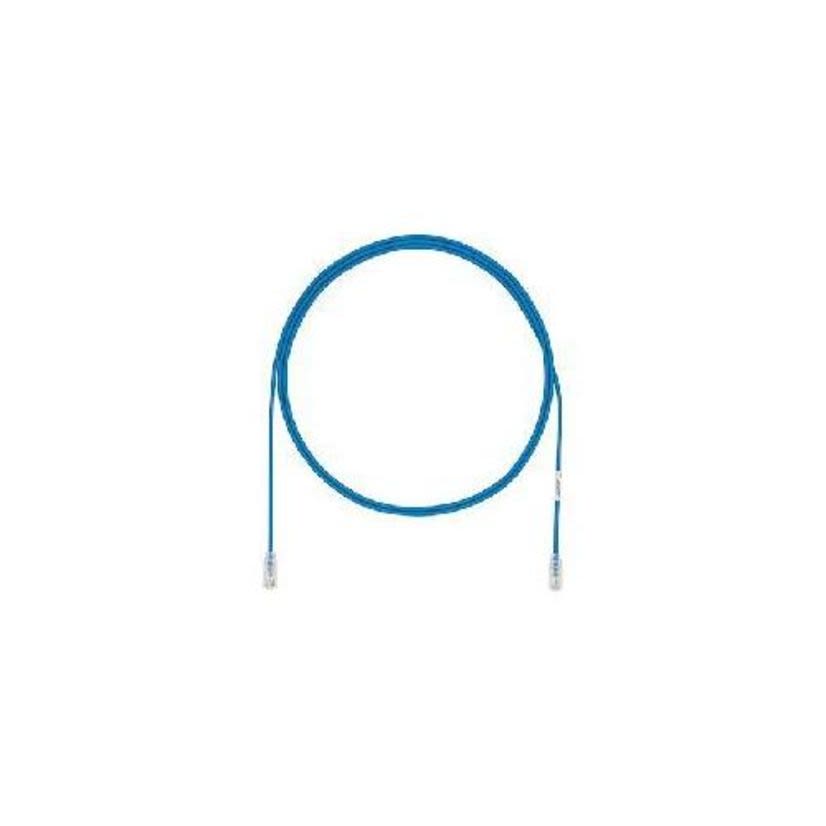

Panduit UTP28X7GR CM LSZH F/UTP Patch Cord, Cat 6A/Class EA, 28 AWG Conductor Solid Copper Conductor, RJ45 Modular Plug Connector, 7 ft L Cord
Panduit UTP28X7GR
Panduit UTP28X7GR CM LSZH F/UTP Patch Cord, Cat 6A/Class EA, 28 AWG Conductor Solid Copper Conductor, RJ45 Modular Plug Connector, 7 ft L CordOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Panduit, UTP28X7GR, Patch Cord, CM LSZH F/UTP, Category: Cat 6A/Class EA, 28 AWG Conductor, Solid Copper Conductor, RJ45 Modular Plug Connector, 7 ft Cord Length, Green Jacket, 14 to 167 deg F
Attributes
Documents
Applications
Features
Specifications
Attributes
Category TypeCat 6A/Class EA
ColorGreen
Conductor size28 AWG
Conductor TypeSolid Copper
Connector TypeRJ45 Modular Plug
Cord Length7 ft
Country of OriginSri Lanka
Jacket ColorGREEN
ManufacturerPanduit
SeriesUTP28X
Temperature Rating14 to 167 deg F
TypeCM LSZH F/UTP
Documents
Applications
10GBASE-T Ethernet, Data Center I/O Consolidation, Data Center Server Virtualization, Backbone Aggregation, Parallel Processing and High Speed Computing Applications
Features
- Smaller diameter, flexible cable design
- Category 6A performance
- 100% performance tested for wire map, NEXT and return loss
- Integral pair manager
- Patented tangle-free latch
- Provides identification of performance level, length and quality control number for traceability
- Robust construction
- Variety of cable colors and lengths
- UL94V-0 rated clear polycarbonate plug housing
- Gold plated phosphor bronze, contacts plated with 50 u-in of gold for superior performance
Specifications
- ANSI/TIA 1096-A
- ANSI/TIA 568.2-D
- ARRA Compliant
- Buy American Act Compliant
- CAN/CSA C22.2
- CE Certified
- CM/LSZH Dual Rated Flammability Rated
- cULus Listed
- IEC 60603-7
- IEEE 802.3af/802.3at/802.3bt
- RoHS Compliant
- UL 1863/File No. E129886
